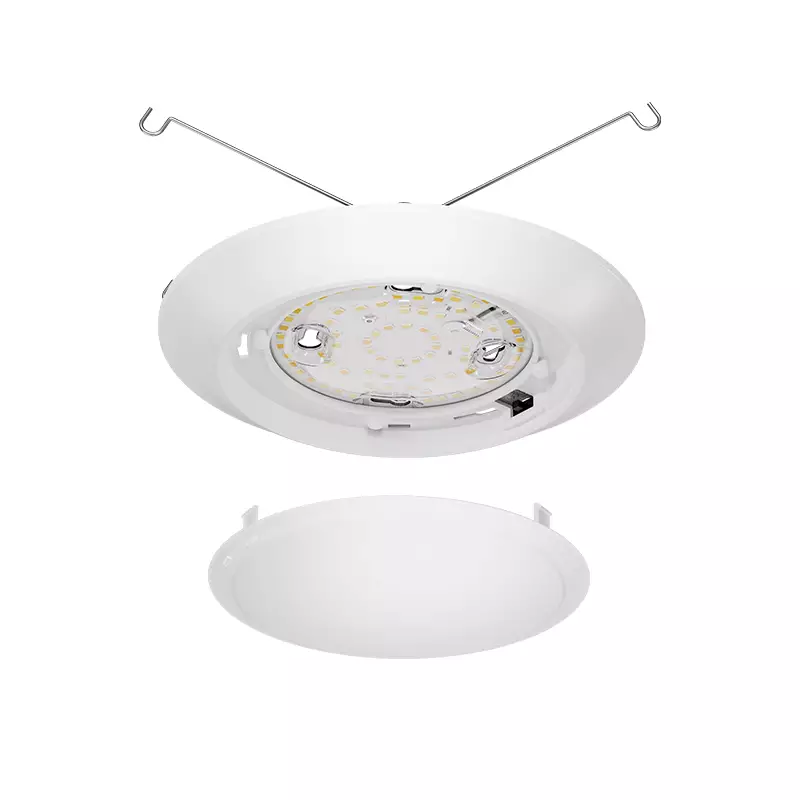

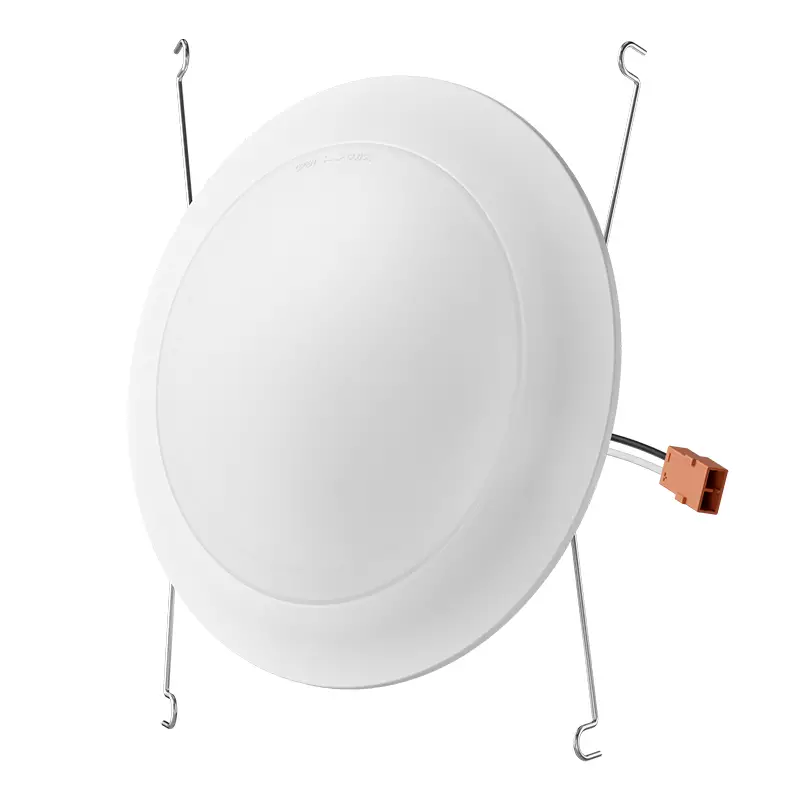

6″ LED Disk Downlight — 14W, 1200LM

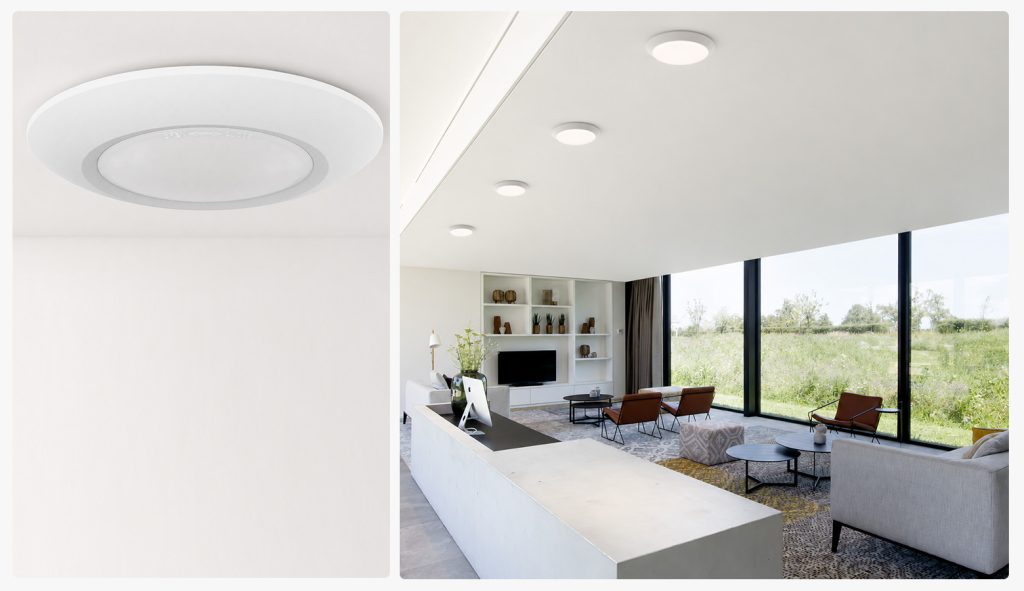

The 6″ LED Disk Downlight offers a sleek, ultra-low profile lighting solution designed for both surface-mount and recessed applications. This versatile fixture provides high-quality illumination with selectable color temperature technology, making it an ideal architectural choice for modernizing residential and commercial spaces. Its slim “disk” design allows for professional lighting results even in areas with extremely limited ceiling depth.
Model :UFOR56AC-PA-5C-S-WH
Wattage :14W
Lumen :1200LM
Color Temperature :2700K/3000K/3500K/4000K/5000K
Voltage :120V/60Hz
CRI :90
Average Life :50000H
Certificate :ETL, Title 24/JA8, FCC

6″ LED Disk Downlight
Versatile Low-Profile Lighting for Seamless Architectural Integration.

Dual Installation Flexibility: Engineered to mount directly to standard junction boxes or retrofit into existing 6-inch recessed housings.
Customizable Visual Ambiance: Features on-fixture 5CCT selectable technology to perfectly match the interior design and room function.
High-Performance Durability: Built for longevity with a 50,000-hour rated life and wet-location suitability for diverse project environments.

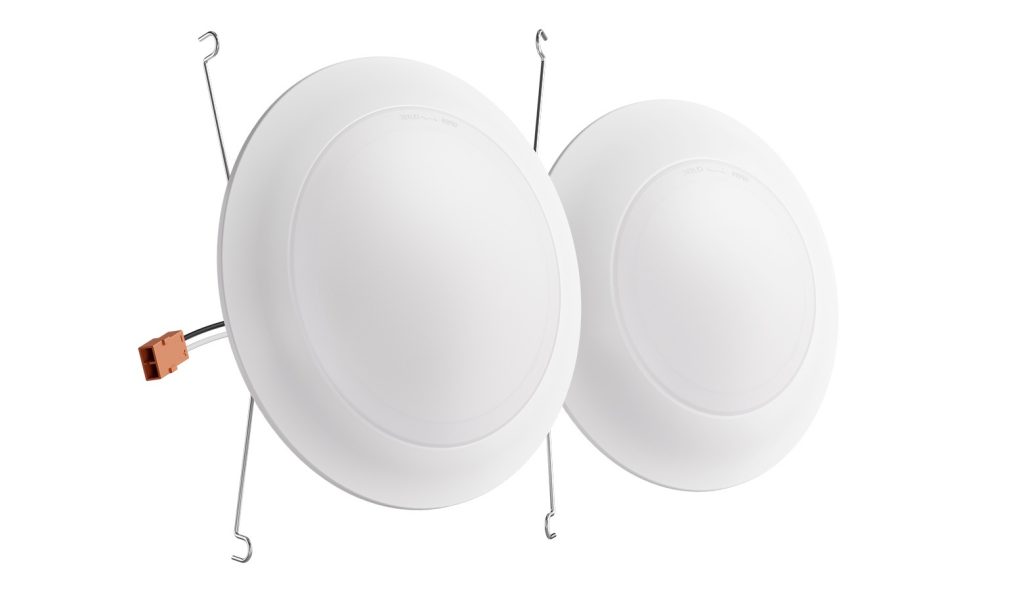

5CCT Selectable Technology

Maximize your project’s versatility with the integrated color temperature switch. Choose between five settings ranging from warm white to daylight (2700K to 5000K) during installation. This allows for precise on-site adjustments, ensuring the lighting complements the final finishes and satisfies specific client preferences.

One Light, Five Experiences.

From warm and cozy to clear and energizing, five selectable color temperatures let you create the perfect atmosphere for every space. Choose 2700K for a soft, inviting glow, 3000K for warm everyday comfort, 3500K for a natural and versatile balance, 4000K for clean and focused illumination, or 5000K for bright, crisp visibility.

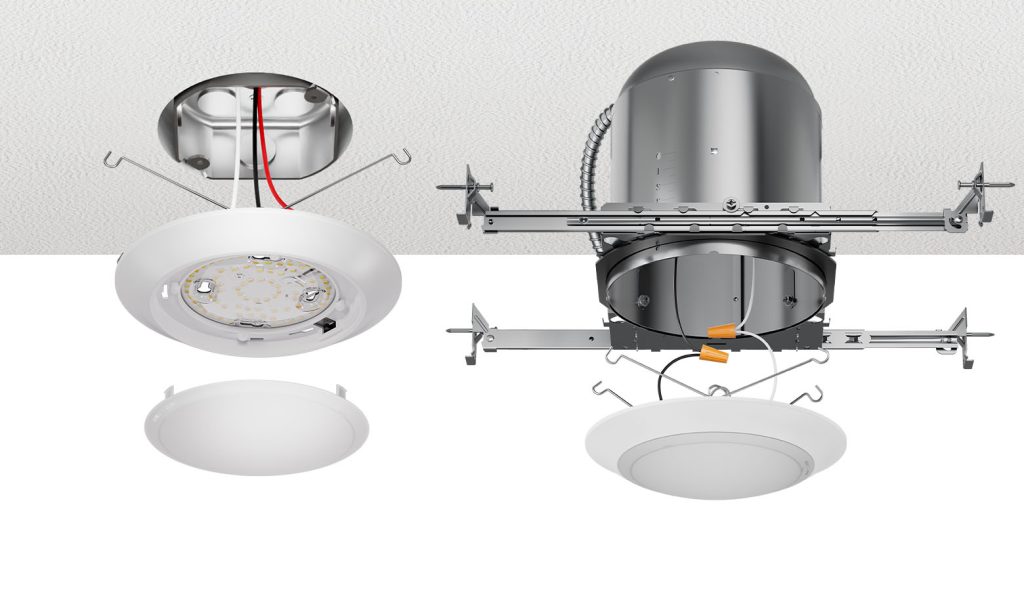

J-Box and Housing Compatibility

Designed for ultimate convenience, this disk light supports two primary installation methods. It can be surface-mounted to a standard octagon junction box (J-box) for a clean, minimalist look, or installed as a retrofit kit in existing 6-inch recessed cans. This dual-purpose design makes it a top-tier choice for both new construction and comprehensive renovation projects.

Installation Instructions

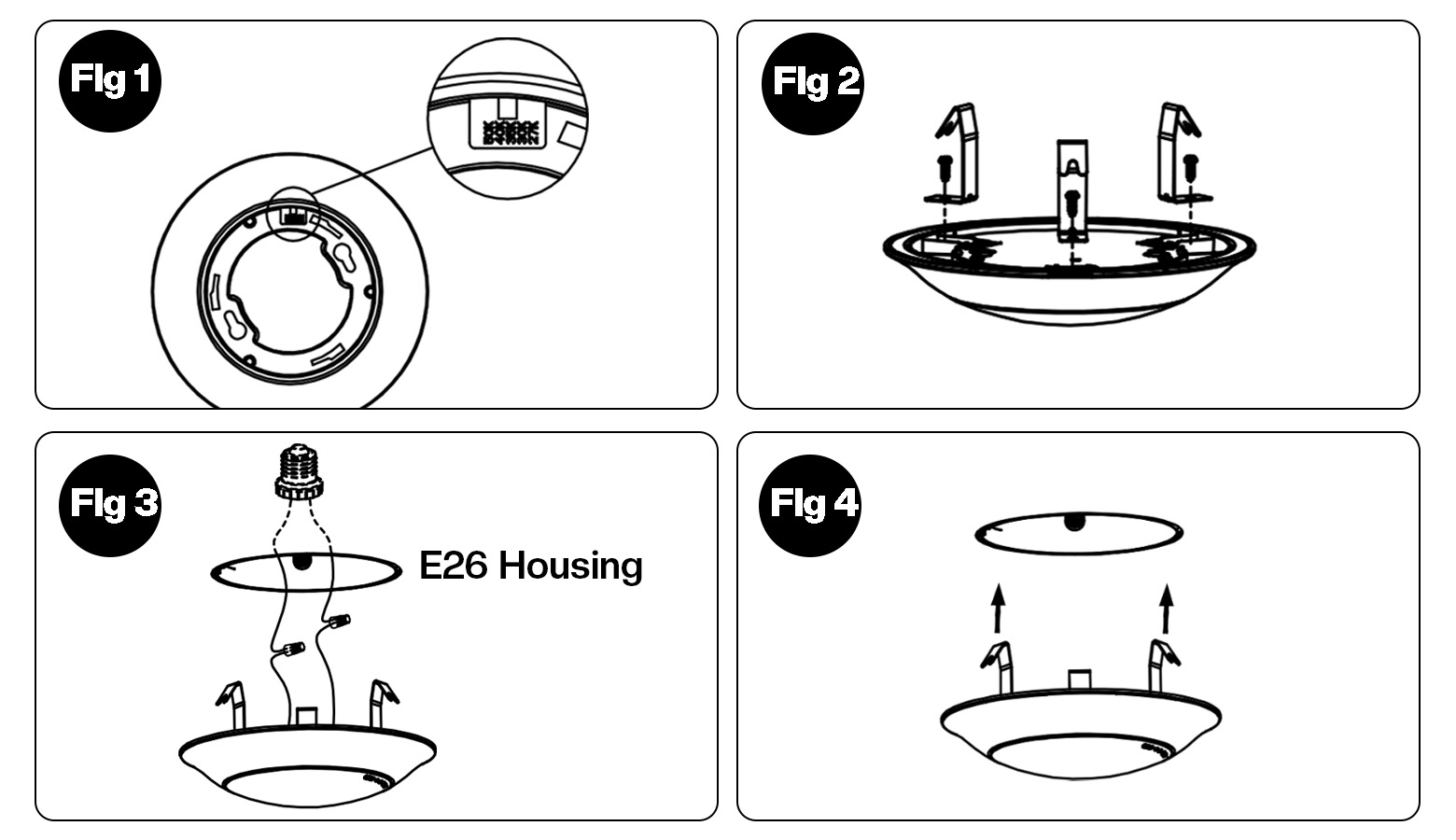

4″HOUSINGS INSTALLATION

1. Set color temperature(Fig. 1)

2. Assemble spring(Fig. 2)

3. Install E26 adaptor and connect wire(Fig. 3)

4. Install light(Fig. 4)bsite has its own keyword database and weekly keyword monitoring system

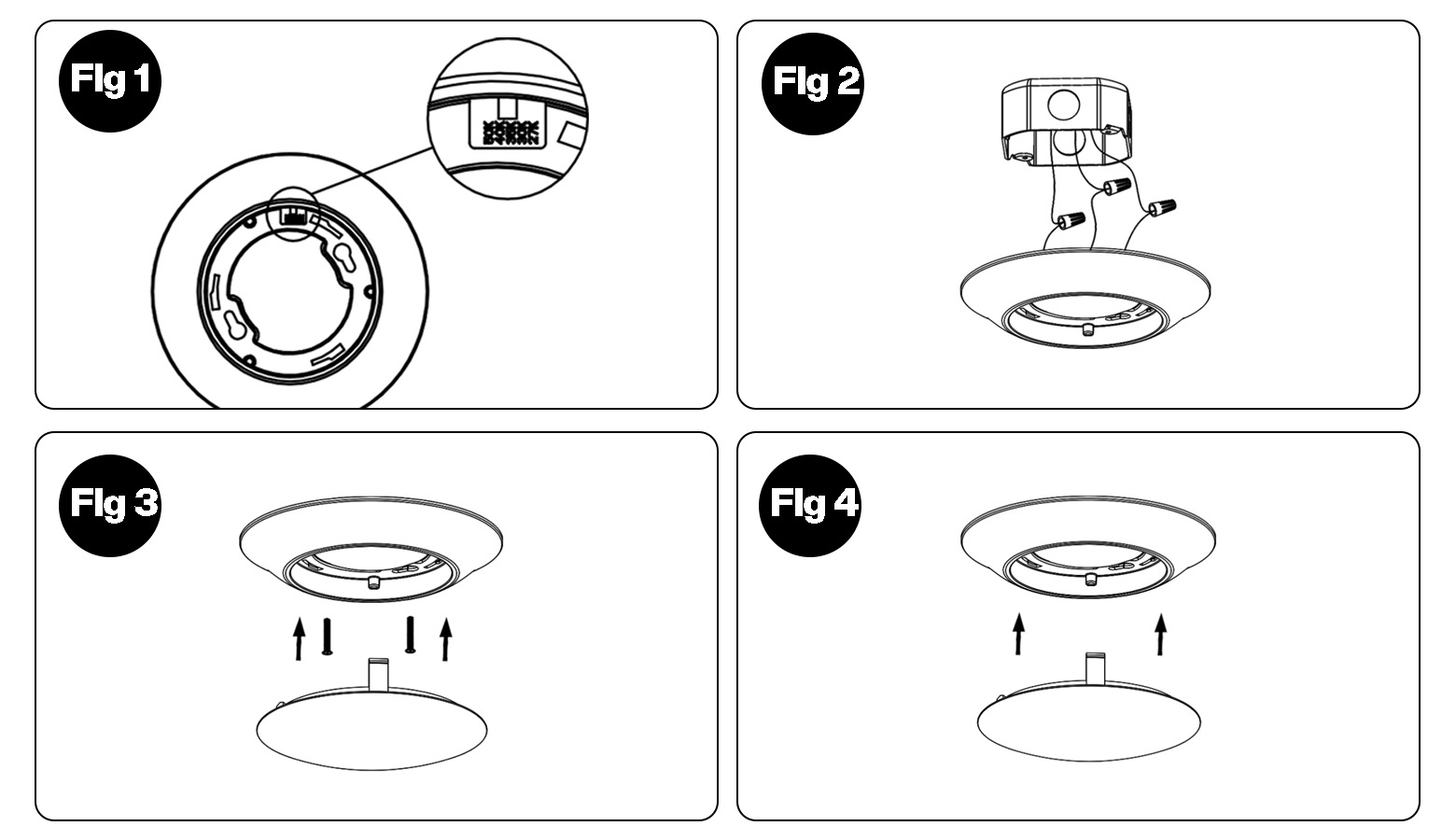

JUNCTION BOX IN STALLATION

1. Set color temperature.(Fig. 1)

2. Connectting wires.(Fig. 2)

3. Locking the screws.(Fig. 3)

4. Locking the lens.(Fig. 4)

6″ LED Disk Downlight – 14W, 1200LM-FAQ

Q1: Can this light be installed without a recessed can?

A: Yes, it can be mounted directly to a standard 4-inch or 3.5-inch junction box.

Q2: Is the color temperature adjustable after installation?

A: The 5CCT switch is located on the fixture; we recommend selecting your preferred color temperature before finalizing the installation.

Q3: Is this fixture suitable for outdoor soffits?

A: Yes, it is wet-location rated and ETL certified for use in bathrooms, kitchens, and protected outdoor areas.
