Steel plate pre-defines cutout spots for canless lights. Improves construction efficiency and alignment for 3/4/6″ fixtures. Essential for standardized new residential projects.
The 3″ / 4″ / 6″ New Construction Mounting Plate is a size-adjustable support component for LED recessed lighting installations. Made from galvanized sheet with a 0.03-inch thickness, it adjusts from 8 1/4″- 25 1/8″ inches to accommodate different framing layouts. Designed for new construction and remodel projects, this mounting plate helps contractors position compatible LED recessed lights with greater flexibility.
Model :Frame 092

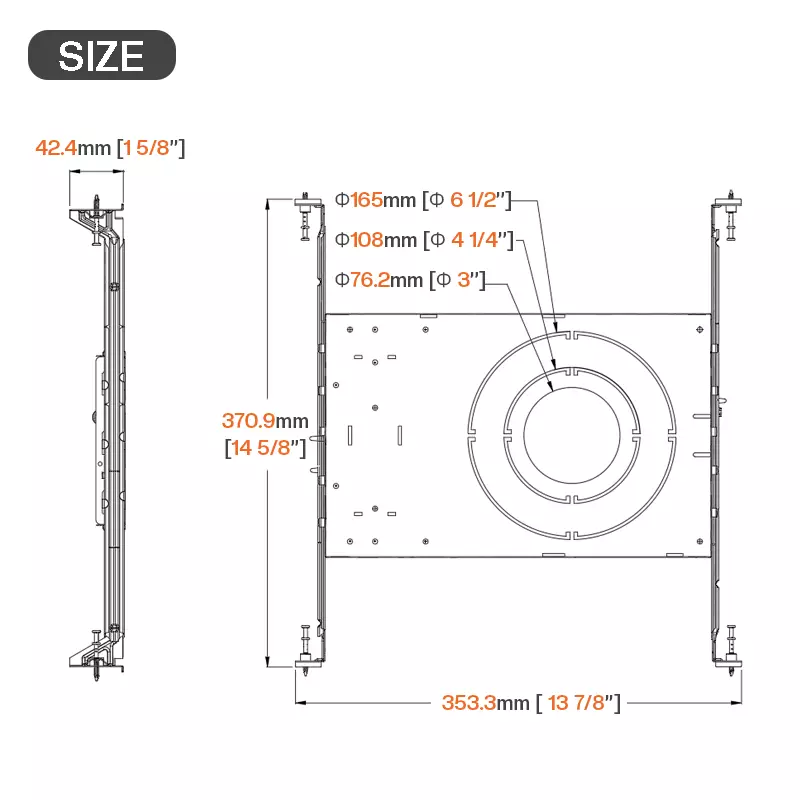

Hole size :76.2mm/108mm/165mm
Material :Galvanized Steel
Compatible Light Sizes :3″, 4″, and 6″

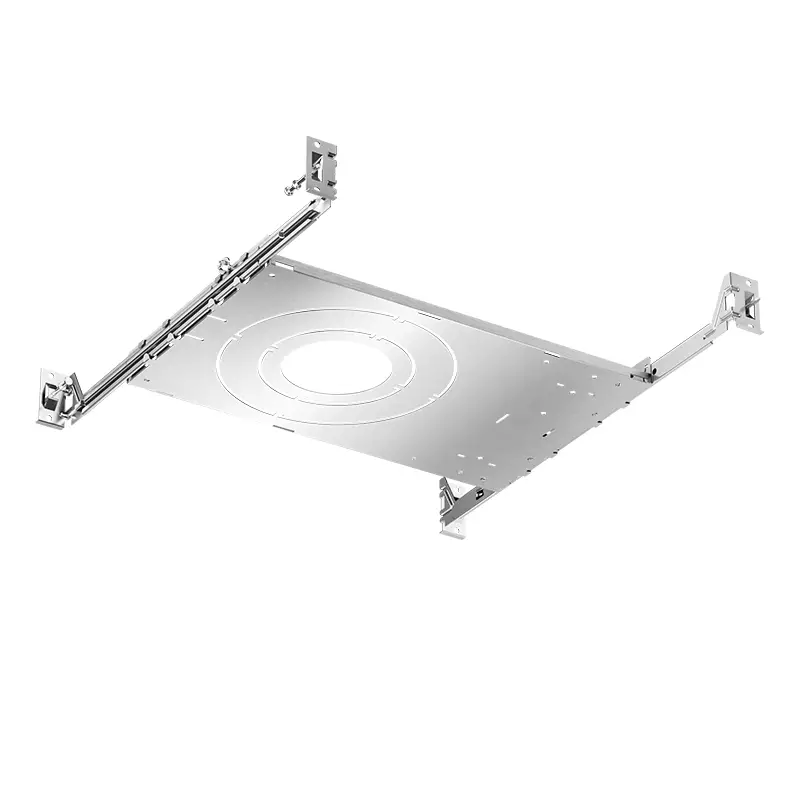

3″ / 4″ / 6″ Round Hole New Construction Mounting Plate
Adjustable Mounting Support for Flexible Recessed Lighting Layouts.
Multi-Size Compatibility: Designed for 3-inch, 4-inch, and 6-inch LED recessed lights.
Adjustable Positioning: 8 1/4 – 25 1/8-inch range adapts to different framing layouts.
Project Ready: Galvanized sheet construction for new construction and remodel installations.
Adjustable Mounting Support for Flexible Recessed Lighting Layouts.
Multi-Size Compatibility: Designed for 3-inch, 4-inch, and 6-inch LED recessed lights.
Adjustable Positioning: 8 1/4 – 25 1/8-inch range adapts to different framing layouts.
Project Ready: Galvanized sheet construction for new construction and remodel installations.

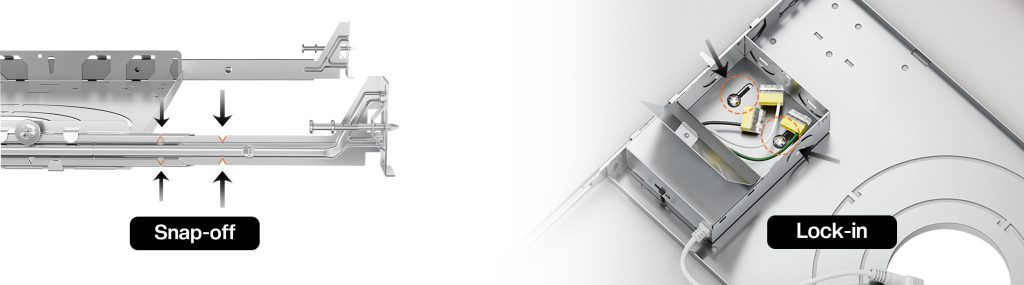

Snap-off: The hanger bars hasrecessed section that can besnapped off to accommodate shorter beam spacing.
Lock-in : The product featuresholes for fixing the junction box,facilitating secure installation.

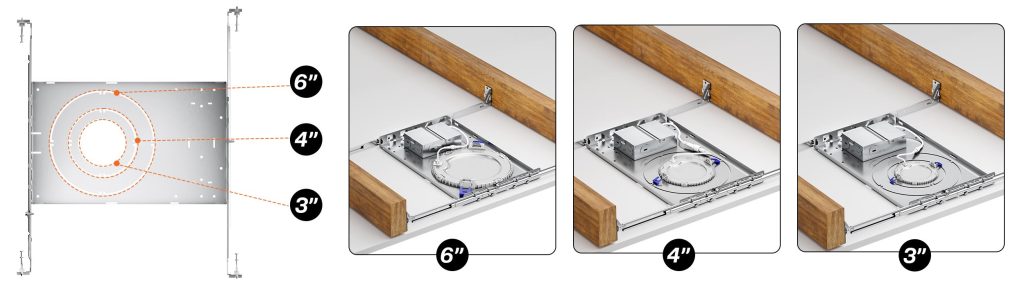

Multi-size Compatibility
One Frame. Three Sizes. More Flexibility.
Compatible with 3″, 4″, and 6″ LED fixtures, allowing one housing frame to support multiple fixture sizes for easier product selection, installation, and inventory management.

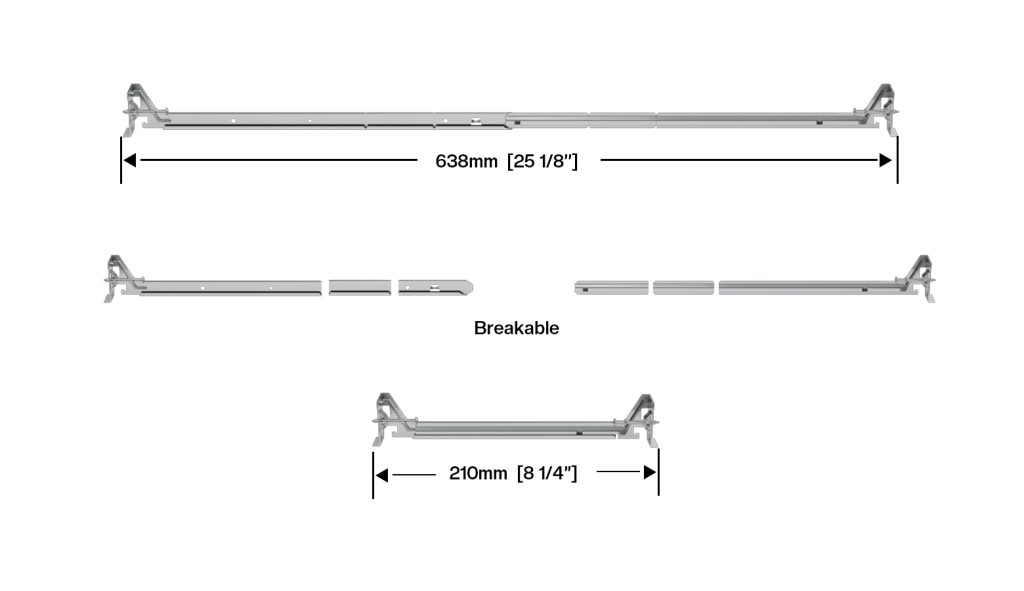

Adjustable or breakaway design to fit different installation distances. The Hanger Bars can beadjusted according toneeds: 8 1/4″- 25 1/8″.

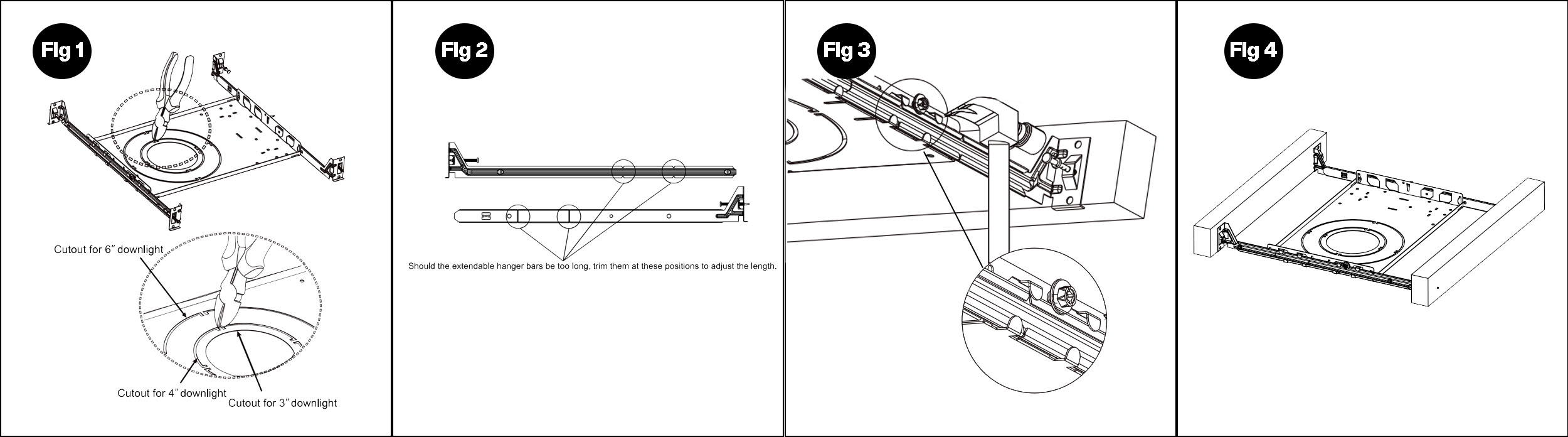

Installation for 3″ / 4″ / 6″ New Construction Mounting Plate
1. Choose the proper size according to the size of your downlight. Using pliers cut the joint. (Fig.1)
2. Adjust the extendable hanger bars as needed. Adjustment range: 9 1/16 – 25 13/64 inch. (Fig.2)
3. Choose the appropriate Hanger Bars length, drive the nails into the wooden beam, and tighten the screws on the side to complete the installation. (Fig.3)
4. Installation completed. (Fig.4)
Q1: What recessed light sizes does this mounting plate support?
A: It is designed for compatible 3-inch, 4-inch, and 6-inch LED recessed lights.
Q2: What is the adjustable range?
A: The mounting plate adjusts from 8 1/4 to 25.20 inches.
Q3: Can it be used for remodel projects?
A: Yes, it is suitable for both new construction and remodel applications.
