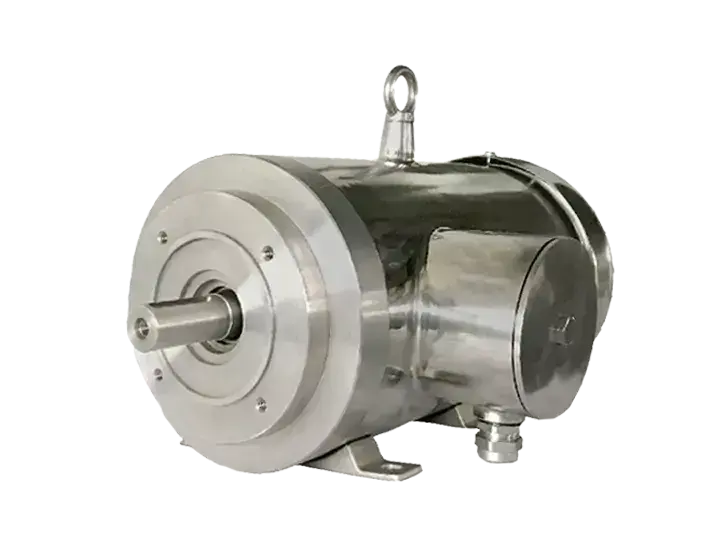

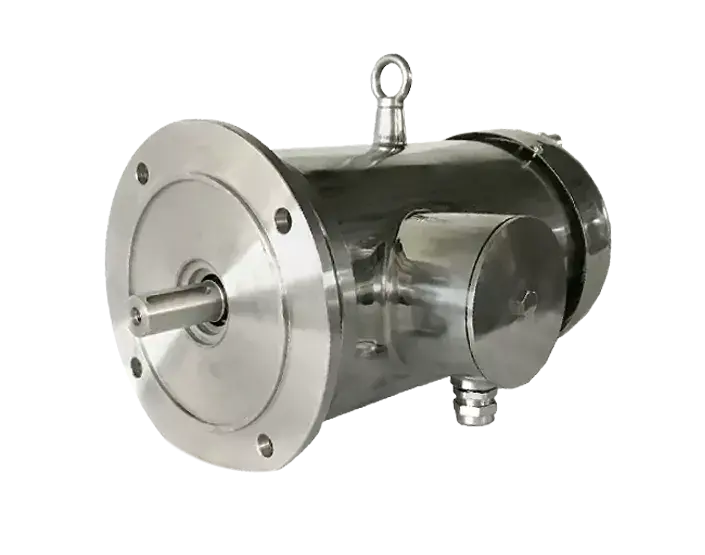

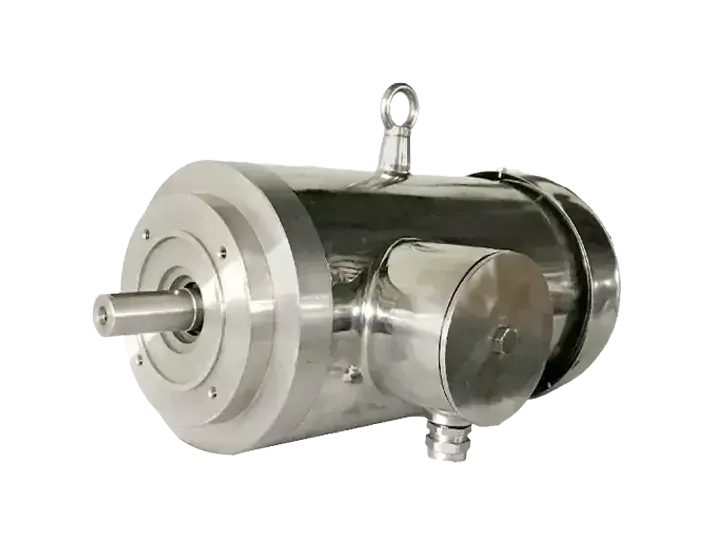

This series is stainless steel three-phase motors with TEFC or TENV structures. YSXL motors with high efficiency conform to IEC standard and for 1Hp or up motors, the efficiency meets IE3 standard. These stainless motors without coating are widely used in food and medical machinery.
|
Series: |
YSXL |
Frame construction: |
Stainless Steel |
|
Frame size: |
80 – 132 |
IP code: |
IP67 |
|
Power output: |
0.75 – 7.5kW |
Insulation Class : |
F |
|
Voltages: |
230/400V |
Cooling method: |
IC411 |
|
Number of poles: |
2, 4, |
Enclosure : |
TEFC |
|
Ambient Temperature : |
40 °C |
Mounting arrangements: |

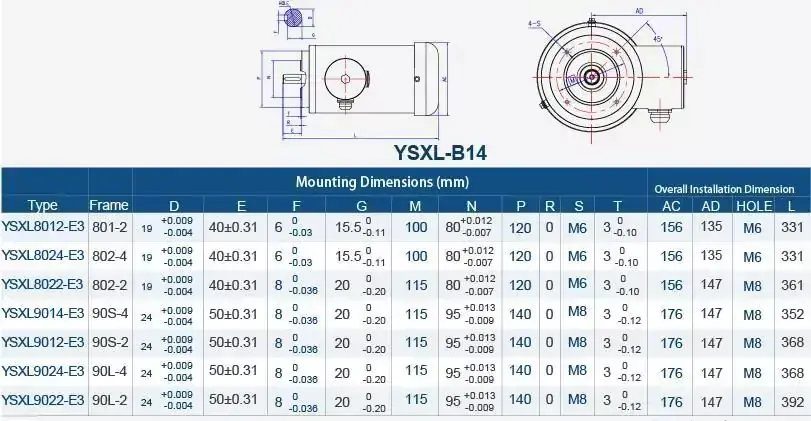

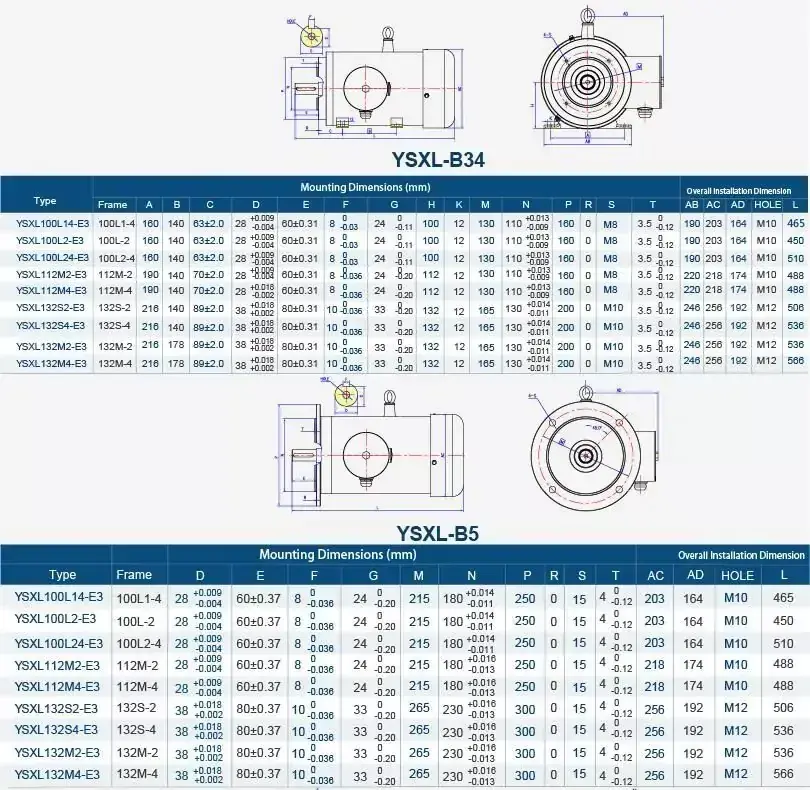

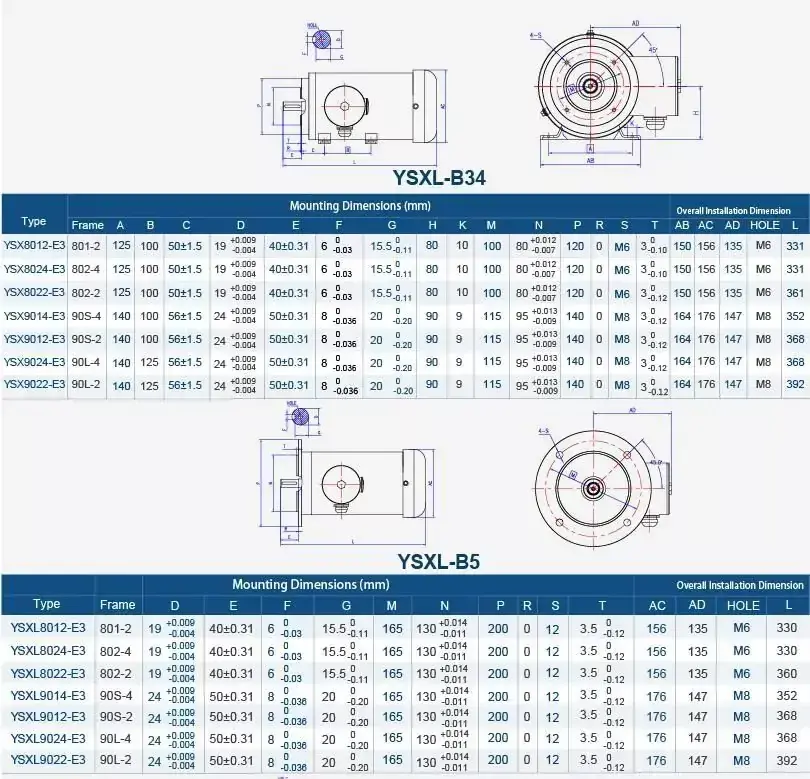

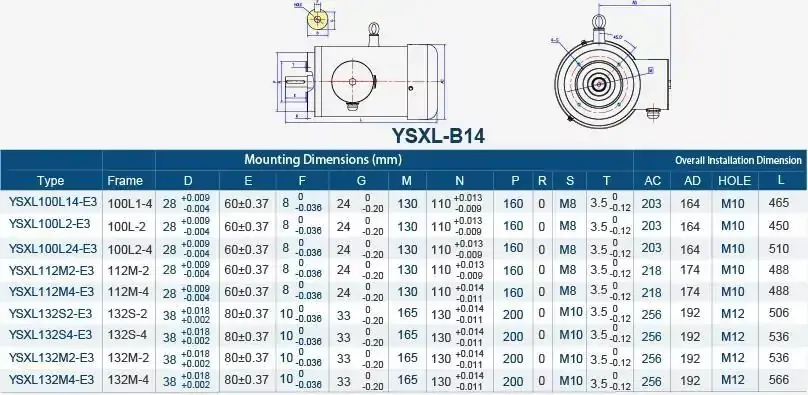

B5, B14, B34 |
| Type | Output (kW) | Speed (r/min) | Frame | Voltage (V) | Freq (Hz) | Current 400V(A) | Power Factor | EFF% | INS. | S.F. | IP CODE | ENCL. |
| YSXL8012-E3 | 0.75 | 3000 | 80 | 230/400 | 50 | 1.45 | 0.82 | IE3 | F | 1.15 | 67 | TEFC |
| YSXL8024-E3 | 0.75 | 1500 | 80 | 230/400 | 50 | 1.75 | 0.75 | IE3 | F | 1.15 | 67 | TEFC |
| YSXL8022-E3 | 1.1 | 3000 | 80 | 230/400 | 50 | 2.2 | 0.83 | IE3 | F | 1.15 | 67 | TEFC |
| YSXL9014-E3 | 1.1 | 1500 | 90 | 230/400 | 50 | 2.48 | 0.76 | IE3 | F | 1.15 | 67 | TEFC |
| YSXL9012-E3 | 1.5 | 3000 | 90 | 230/400 | 50 | 3.1 | 0.77 | IE3 | F | 1.15 | 67 | TEFC |
| YSXL9024-E3 | 1.5 | 1500 | 90 | 230/400 | 50 | 3.3 | 0.77 | IE3 | F | 1.15 | 67 | TEFC |
| YSXL9022-E3 | 2.2 | 3000 | 90 | 230/400 | 50 | 4.3 | 0.85 | IE3 | F | 1.15 | 67 | TEFC |
| YSXL100L14-E3 | 2.2 | 1500 | 100 | 230/400 | 50 | 4.4 | 0.81 | IE3 | F | 1.15 | 67 | TEFC |
| YSXL100L2-E3 | 3 | 3000 | 100 | 230/400 | 50 | 5.5 | 0.87 | IE3 | F | 1.15 | 67 | TEFC |
| YSXL100L24-E3 | 3 | 1500 | 100 | 230/400 | 50 | 6.15 | 0.82 | IE3 | F | 1.15 | 67 | TEFC |
| YSXL112M2-E3 | 4 | 3000 | 112 | 230/400 | 50 | 7.45 | 0.88 | IE3 | F | 1.15 | 67 | TEFC |
| YSXL112M4-E3 | 4 | 1500 | 112 | 230/400 | 50 | 8.3 | 0.82 | IE3 | F | 1.15 | 67 | TEFC |
| YSXL132S2-E3 | 5.5 | 3000 | 132 | 230/400 | 50 | 9.5 | 0.88 | IE3 | F | 1.15 | 67 | TEFC |
| YSXL132S4-E3 | 5.5 | 1500 | 132 | 230/400 | 50 | 10.8 | 0.83 | IE3 | F | 1.15 | 67 | TEFC |
| YSXL132S2-E3 | 7.5 | 3000 | 132 | 230/400 | 50 | 13.2 | 0.87 | IE3 | F | 1.15 | 67 | TEFC |
| YSXL132M4-E3 | 7.5 | 1500 | 132 | 230/400 | 50 | 14.6 | 0.84 | IE3 | F | 1.15 | 67 | TEFC |
