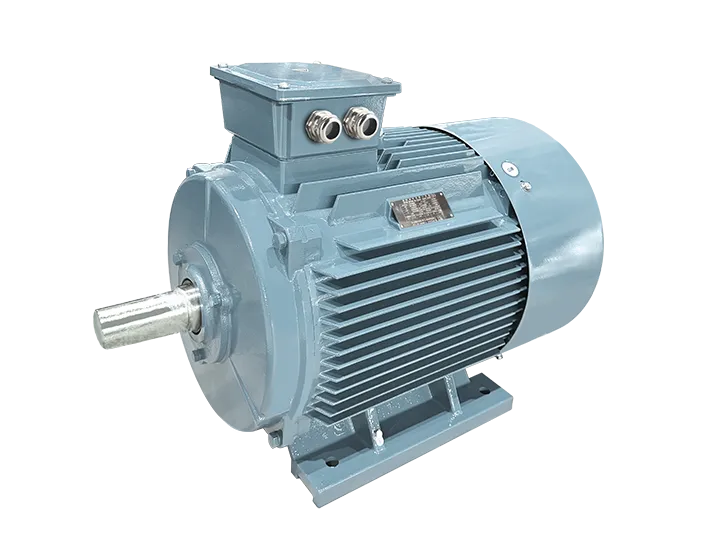

IEC-Y-H Series Marine Three-Phase Asynchronous Motors

Y-H Series Marine Three-Phase Asynchronous Motors

Y – H 系列船用三相异步电动机按照国家标准
IEC60034-1《旋转电机：定额和性能》和现行《钢制海
船入级规范》设计，具有效率高、噪声低、启动性能好、
可靠性高等优点，适用于船舶各种机械的驱动、辅助设
备及类似船用要求的其他各种设备。
Y-H船用三相
异步电动机
01
The Y-H series marine three-phase asynchronous
motors are designed in accordance with
lEC60034-1 “Quota and Performance of Rotating
Electrical Machines” and the current “Classification
Standard for Steel Seagoing Vessels”. The
motors has the advantages of high efficiency,low
noise, good starting performance, and high
reliability, and is suitable for driving various
machinery on ships, auxiliary equipment, and
other equipment with similar marine requirements.

特征

· 机座号: 80mm～355mm
· 输出功率: 0.55～315kW
· 极数: 2、4、6、8极
· 电压： 380/440V
· 频率: 50/60Hz
· 安装方式: B3、B5、V1、B35等
· 绝缘等级及温升: F/B，H/B
· 防护等级: IP55，IP56
· 传动方式：电机可用皮带轮、正齿轮或弹性连轴器
传动。

Features

· Frame Size： 80mm～355mm
· Output : 0.55～315kW
· Poles: 2P、4P、6P、8P
· Voltage: 380/440V
· Frequency: 50/60Hz
· Mounting :B3、B5、V1、B35 etc
· Insulation class and temperature rise:F/B，H/B
· Protection grade:IP55，IP56
· Driving method: The motor can be driven by
belt pulley, spur gears, or elastic couplings.

使用条件 The Use of Terms

1、环境空气温度:-25°C～45℃
2、空气相对湿度不大于95%,并有凝露
3、有盐雾、油雾、霉菌及海水的影响
4、允许倾斜摇摆:倾斜:±30°,摇摆:±22.5°
5、能承受船舶和近海装置正常营运和作业中产生
的冲击、振动的影响。

The Use of Terms

Ambientairtemperature:-25°C～45°C
The air relative humidityis no more than 95%,
and condensation
lnpluenod by Salt mist, oil mist, mold and
seawater
Tilting and rocking: tilting: ±30°, rocking: ± 22.5°
Able to withstand theimpact and vibration
generated during thenormaloperation and
operation of ships and offshore installations.

Series:	Y-H	Frame construction:	Cast Iron
Frame size:	80 – 355	Enclosure:	TEFC
Power output:	0.55 – 315KW	Insulation Class:	F 、H
Voltages:	380/440V	Cooling method:	IC411 、IC410、IC418
Number of poles:	2, 4, 6,8	Certificates:	CCC, CE
Ambient Temperature:	40 °C	Mounting arrangements:	B3、B5、V1、B35 etc

Type	Rated output		Rated current		Rated speed		Locked-rotor torque/ Rated torque		Maximum torque/ Rated torque		Locked rotor apparent power/Rated output		Efficiency		Power factor		WGT LB/KG
			（A）		（r/min）		Locked-rotor torque/ Rated torque		Maximum torque/ Rated torque		Locked rotor apparent power/Rated output		（%）
	kW	HP	50Hz	60Hz	50Hz	60Hz	50Hz	60Hz	50Hz	60Hz	50Hz	60Hz	50Hz	60Hz	50Hz	60Hz
	kW	HP	380V	440V	380V	440V	380V	440V	380V	440V	380V	440V	380V	440V	380V	440V
Y80M1-2-H	0.75	1	1.8	1.6	2820	3460	1.9		2.1		13		75.0	76.5	0.84	0.82	17
Y80M2-2-H	1.1	1.5	2.6	2.2	2820	3460							76.5	77.5	0.85	0.85	19
Y90S-2-H	1.5	2	3.5	3.1	2840	3470							79.5	80.0	0.82	0.80	23
Y90L-2-H	2.2	3	4.9	4.3	2840	3470							82.5	83.5	0.83	0.81	26
Y100L-2-H	3	4	6.2	5.4	2880	3490							84.0	84.0	0.87	0.86	33
Y112M-2-H	4	5.5	8.2	7.2	2890	3500							86.5	87.0	0.86	0.84	46
Y132S1-2-H	5.5	7.5	11	9.6	2900	3520	1.5		2.0				86.5	86.0	0.88	0.87	78
Y132S2-2-H	7.5	10	14.6	12.9	2900	3520	1.5				12		87.5	87.0	0.89	0.88	90
Y160M1-2-H	11	15	21.6	18.7	2930	3540	1.8						89.0	88.5	0.87	0.87	120
Y160M2-2-H	15	20	28.9	25.1	2930	3540							89.0	90.0	0.88	0.88	135
Y160L-2-H	18.5	25	35.7	30.3	2940	3550							89.5	90.0	0.88	0.89	160
Y180M-2-H	22	30	42.2	36.9	2955	3560							89.5	89.0	0.88	0.88	180
Y200L1-2-H	30	40	57.9	50.3	2960	3560	1.7		1.8		11		89.5	89.0	0.88	0.88	215
Y200L2-2-H	37	50	69.4	60.3	2960	3570							92.0	91.5	0.88	0.88	245
Y225M-2-H	45	60	85.9	76.3	2970	3580							90.5	90.5	0.88	0.86	330
Y250M-2-H	55	75	103.2	91.7	2970	3580							92.0	90.5	0.88	0.87	400
Y280S-2-H	75	100	139.2	120.9	2970	3580							92.0	91.5	0.89	0.89	535
Y280M-2-H	90	125	167.1	143.5	2970	3580							93.0	92.5	0.88	0.89	550
Y315S-2-H	110	150	203.01	180.24	2970	3580	1.4				10		92.5	91.0	0.89	0.88	980
Y315M-2-H	132	175	242.3	215.11	2970	3580							93.0	91.5	0.89	0.88	1080
Y315L1-2-H	160	220	292.13	259.32	2970	3580							93.5	92.0	0.89	0.88	1160
Y315L2-2-H	200	270	365.16	324.15	2970	3580							93.5	92.0	0.89	0.88	1260
Y355M-2-H	250	350	451.38	400.63	2970	3580	1.1		1.9				93.5	92.0	0.90	0.89	1600
Y355L-2-H	315	422	565.71	502.07	2970	3580	1.1		1.9				94.0	92.5	0.90	0.89	1800

Y80M1-4-H	0.55	0.7	1.5	1.4	1390	1710	2.0		2.1		13		72.5	74.0	0.75	0.71	17
Y80M2-4-H	0.75	1	2. 1	1.8	1390	1710	1.9						74.0	76.0	0.75	0.72	19
Y90S-4-H	1.1	1.5	2.7	2.4	1400	1710							78.0	79.0	0.78	0.75	23
Y90L-4-H	1.5	2	3.6	3.2	1400	1710							79.0	80.5	0.80	0.77	26
Y100L1-4-H	2.2	3	5	4.5	1420	1730							81.5	82.5	0.81	0.78	36
Y100L2-4-H	3	4	6.8	5.9	1420	1730							83.0	85.0	0.81	0.78	39
Y112M-4-H	4	5.5	8.9	7.7	1440	1750							84.5	86.0	0.81	0.79	47
Y132S-4-H	5.5	7.5	11.7	10	1440	1750	1.8		2.0				86.0	88.0	0.83	0.82	78
Y132M-4-H	7.5	10	15.4	13.2	1440	1750					12		87.0	88.5	0.85	0.84	98
Y160M-4-H	11	15	22.6	19.5	1460	1760							88.5	89.0	0.83	0.83	123
Y160L-4-H	15	20	30.5	26.3	1460	1760							89.0	90.0	0.84	0.83	152
Y180M-4-H	18.5	25	35.9	30.8	1470	1770							91.0	91.5	0.86	0.86	180
Y180L-4-H	22	30	42.2	36.9	1470	1770							91.0	91.0	0.87	0.86	200
Y200L-4-H	30	40	57.3	49.8	1480	1780	1.7		1.9		11		91.5	92.0	0.87	0.86	260
Y225S-4-H	37	50	70.2	60.3	1480	1780							92.0	92.5	0.87	0.87	321
Y225M-4-H	45	60	84	73.4	1480	1780							92.5	92.5	0.88	0.87	355
Y250M-4-H	55	75	103.8	88.7	1480	1780							92.5	92.5	0.88	0.88	417
Y280S-4-H	75	100	139.2	120	1480	1790							93.0	92.5	0.88	0.88	550
Y280M-4-H	90	125	164.3	141.9	1480	1790	1.6						93.5	93.5	0.89	0.89	650
Y315S-4-H	110	150	200.84	177.32	1480	1790	1.4		1.8		10		93.5	92.5	0.89	0.88	1000
Y315M-4-H	132	175	239.72	211.64	1480	1790							94.0	93.0	0.89	0.88	1100
Y315L1-4-H	160	220	289.04	255.16	1480	1790							94.5	93.5	0.89	0.88	1160
Y315L2-4-H	200	270	361.3	318.95	1480	1790							94.5	93.5	0.89	0.88	1260
Y355M-4-H	250	350	464.46	410.15	1480	1790	1.2		1.9				94.0	93.0	0.87	0.86	1600
Y355L-4-H	315	422	582.12	514.03	1480	1790	1.2		1.9				94.5	93.5	0.87	0.86	1800

Y90S-6-H	0.75	1	2.2	2	910	1130	1.8		2.0		13		72.5	74.0	0.70	0.67	20
Y90L-6-H	1.1	1.5	3.2	2.9	910	1130							72.5	74.0	0.71	0.68	24
Y100L-6-H	1.5	2	4	3.5	940	1150							77.5	79.5	0.73	0.70	33
Y112M-6-H	2.2	3	5.8	5.2	940	1150							79.5	82.0	0.72	0.68	47
Y132S-6-H	3	4	7.2	6.4	960	1170							83.5	83.5	0.76	0.74	66
Y132M1-6-H	4	5.5	9.5	8.2	960	1170							84.0	86.0	0.76	0.74	80
Y132M2-6-H	5.5	7.5	12.5	10.7	960	1170							86.0	87.5	0.78	0.77	90
Y160M-6-H	7.5	10	17.1	14.8	970	1170	1.7		1.9		12		87.5	88.5	0.76	0.75	100
Y160L-6-H	11	15	25	21.7	970	1170							88.0	88.5	0.76	0.75	125
Y180L-6-H	15	20	33	29.3	970	1180							88.5	88.5	0.78	0.76	195
Y200L1-6-H	18.5	25	37.6	32.7	980	1180							90.0	90.5	0.83	0.82	225
Y200L2-6-H	22	30	44.7	38.9	980	1180							90.0	90.5	0.83	0.82	275
Y225M-6-H	30	40	61.1	53.1	990	1190	1.5		1.8		11		91.0	91.5	0.82	0.81	325
Y250M-6-H	37	50	71	61.3	980	1180							91.0	91.0	0.87	0.87	430
Y280S-6-H	45	60	86.4	74.6	980	1190							92.0	92.0	0.86	0.85	505
Y280M-6-H	55	75	103.2	89.7	980	1190							92.0	92.5	0.88	0.87	540
Y315S-6-H	75	100	141.14	123.98	980	1190	1.2		1.7				92.8	92.3	0.87	0.86	990
Y315M-6-H	90	125	168.64	148.13	980	1190							93.2	92.7	0.87	0.86	1080
Y315L1-6-H	110	150	205.46	180.47	980	1190					10		93.5	93.0	0.87	0.86	1150
Y315L2-6-H	132	175	245.76	215.86	980	1190							93.8	93.3	0.87	0.86	1210
Y355M1-6-H	160	220	302	265.3	980	1190	1.1		1.8				93.6	93.1	0.87	0.85	1500
Y355M2-6-H	200	270	376.69	330.91	980	1190							93.8	93.3	0.86	0.85	l700
Y355L-6-H	250	350	468.86	411.88	980	1190							94.2	93.7	0.86	0.85	1900

Y132S-8-H	2.2	3	5.8	5.2	710	860	1.7		1.9		13		80.0	81.0	0.72	0.68	66
Y132M-8-H	3	4	7.6	6.8	710	860							82.5	83.5	0.73	0.69	80
Y160M1-8-H	4	5.5	10.5	9.1	720	870							84.0	86.0	0.69	0.67	92
Y160M2-8-H	5.5	7.5	13.4	11.5	720	870							85.5	87.0	0.73	0.72	105
Y160L-8-H	7.5	10	17.7	15.5	720	880					12		86.0	87.0	0.75	0.73	130
Y180L-8-H	11	15	25.6	22.2	730	880	1.5		1.8				87.0	88.0	0.75	0.74	175
Y200L-8-H	15	20	33.3	29.2	730	890							89.0	90.0	0.77	0.75	255
Y225S-8-H	18.5	25	40.3	35.6	740	890							90.5	91.0	0.77	0.75	300
Y225M-8-H	22	30	47.4	41.7	730	890							90.5	91.0	0.78	0.76	320
Y250M-8-H	30	40	64.7	57.1	740	890					11		91.5	92.0	0.77	0.75	420
Y280S-8-H	37	50	79.8	68.9	740	890							91.5	91.5	0.77	0.77	515
Y280M-8-H	45	60	94.8	80.8	740	890							92.5	92.5	0.78	0.79	550
Y315S-8-H	55	75	113.54	98.59	740	890	1.2		1.7				92.0	91.5	0.80	0.80	1000
Y315M-8-H	75	100	152.09	132.06	740	890							92.5	92.0	0.81	0.81	1100
Y315L1-8-H	90	125	179.31	155.69	740	890							93.0	92.5	0.82	0.82	1160
Y315L2-8-H	110	150	218.45	189.63	740	890					10		93.3	92.8	0.82	0.82	1230
Y355M1-8-H	132	175	264.8	229.93	740	890	1.1		1.8				93.5	93.0	0.81	0.81	1500
Y355M2-8-H	160	220	320.3	278.1	740	890							93.7	93.2	0.81	0.81	1600
Y355L-8-H	200	270	399.09	346.51	740	890							94.0	93.5	0.81	0.81	1800
