YCJ Series Single-Phase Capacitor-Start Motors

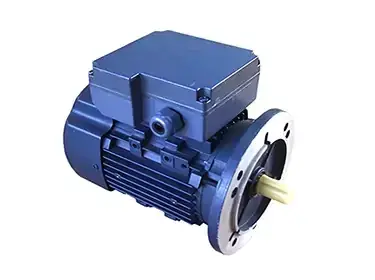

YCJ Series Single-Phase Capacitor-Start Motors1

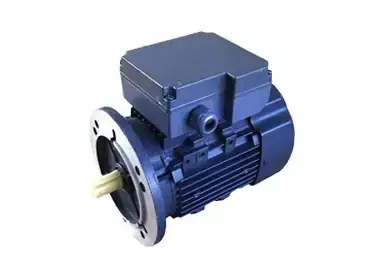

YCJ Series Single-Phase Capacitor-Start Motors2

特征

· YCJ系列压铸铝机壳单相电容起动异步电动机
· 包括：71，80和90三个机座
· 电动机符合IEC标准
· 适用于单相电源又需要较高起动转矩的场合

Features

· IEC standard Design.
· High quality of starting performance.
· Apply to fan/blower, pump, compressor and etc.
· Mounting: B3 ,B14 , B34 , B5, B35.

Series:	YCJ	Frame Construction:	Aluminium
Frame Size:	71 – 90	IP Code:	IP55
Power Output:	0.18- 1.1kW	Insulation Class :	F
Voltages:	220V	Cooling Method:	IC411
Number of Poles:	2, 4,	Certificates:	CCC, CE
Ambient Temperature :	40 °C	Mounting Arrangements:	B3, B14, B5, B34, B35

Type	Output	Voltage	Freq	Current	Speed	Eff	Power	Start Torque	Start Current	Max Torque	Service
Type	(W)	(v)	(Hz)	(A)	(r/min)	(%)	factor	Rated Torque	（A）	Rated Torque	Factor
YCJ7112	180	220	50	1.91	2800	58	0.74	2.5	12	1.8	1
YCJ7122	250	220	50	2.52	2800	61	0.74	2.5	15
YCJ8012	370	220	50	3.88	2800	62	0.7	2.5	21
YCJ8022	550	220	50	5.57	2800	65	0.69	2.5	29
YCJ90S2	750	220	50	5.94	2800	70	0.82	2.5	37
YCJ90L2	1100	220	50	8.47	2800	72	0.82	2.5	60
YCJ7114	120	220	50	1.98	1400	46	0.6	2.5	9
YCJ7124	180	220	50	2.51	1400	51	0.64	2.8	12
YCJ8014	250	220	50	3.39	1400	54	0.62	2.5	15
YCJ8024	370	220	50	4.31	1400	60	0.65	2.5	21
YCJ90S4	550	220	50	5.57	1400	65	0.69	2.5	29
YCJ90L4	750	220	50	6.77	1400	69	0.73	2.5	37


Type	Output	Voltage	Freq	Current	Speed	Eff	Power	Start Torque	Start Current	Max Torque	Service
Type	(W)	(v)	(Hz)	(A)	(r/min)	(%)	factor	Rated Torque	（A）	Rated Torque	Factor
YCJ7112	180	230	60	1.64	3400	61	0.78	2.5	12	1.8	1.15
YCJ7122	250	230	60	2.18	3400	64	0.78	2.5	15
YCJ8012	370	230	60	3.12	3400	67	0.77	2.5	21
YCJ8022	550	230	60	4.32	3400	71	0.78	2.5	29
YCJ90S2	750	230	60	5.26	3400	73	0.85	2.5	36
YCJ90L2	1100	230	60	7.52	3400	74	0.86	2.5	60
YCJ7114	120	230	60	1.68	1700	51	0.61	2.5	9
YCJ7124	180	230	60	2.19	1700	55	0.65	2.8	12
YCJ8014	250	230	60	2.58	1700	62	0.68	2.5	15
YCJ8024	370	230	60	3.43	1700	66	0.71	2.5	21
YCJ90S4	550	230	60	4.56	1700	70	0.75	2.5	29
YCJ90L4	750	230	60	5.89	1700	71	0.78	2.5	36

YCJ Series Single-Phase Capacitor-Start Motors Download
