Submersible & Sewage Pumps

Sewage_Pump 2026 Download

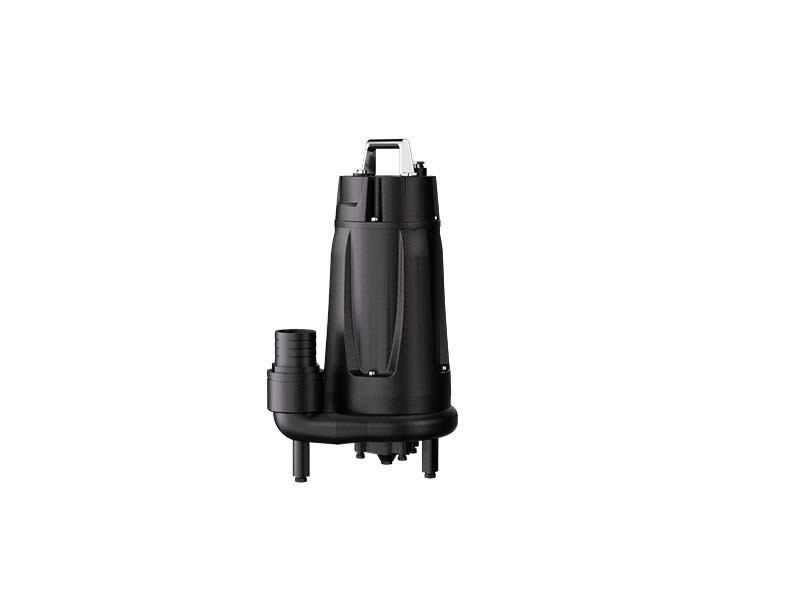

WQ(D)-QG-C
Effluent Sewage Pump with Cutting System

The WQ(D)-QG-C pump boasts outstanding design features. Its surface undergoes electrophoretic coating, forming a robust rust and corrosion-resistant barrier. It is equipped with a cutting mechanism made from high-quality chromium alloy, while its high-performance motor—featuring a wide voltage range (180-240V) and 50Hz frequency—effortlessly adapts to unstable power supplies.

Flow rate	up to 395 l/min (23.7 m³/h)
Head up	Up to 19.3 m
Liquid temperature	up to +40℃
Maximum operating depth below water level	up to 5 m
Medium PH	4~10
Max. liquid density	1.2×10³ kg/m³

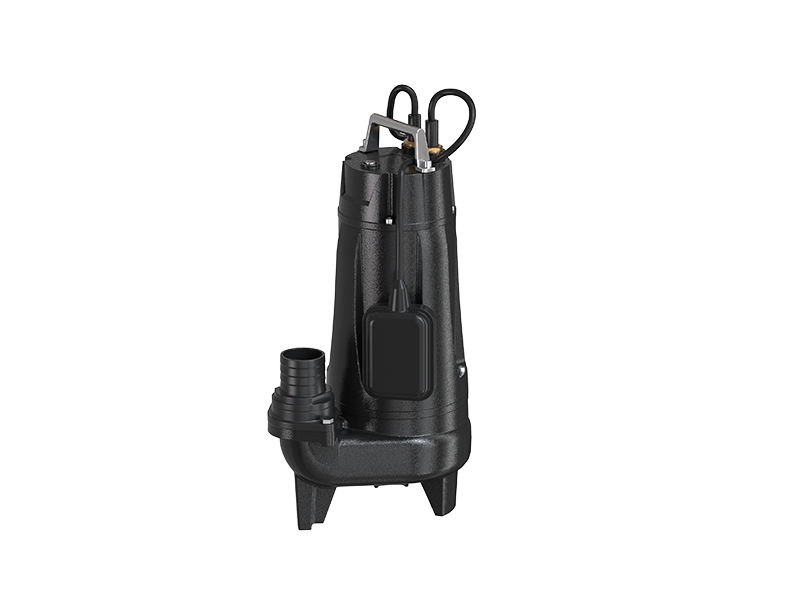

WQ(D)X-A
Free-Passage Vortex Sewage Effluent Pump

WQ(D)X-A is designed for multiple sewage and effluent application.Internal and external pipe threaded outlet, threaded hard pipes and hoses optional connection; Thickened all-cast iron structure, fully pump electrophoresis ensures corrosion-resistance and wear-resistance; Optimized motor electromagnetic design, wide voltage ranges of180-240V normal use, stronger overload resistance;Built-in thermal protector, safe and reliable; Stainless steel handle, corrosion-resistant, easy handle, comfortable to carry; Free passage for multiple sewage application, 32-46mm ultra-large pass rate, surging power, unobstructed sewage discharge;

Flow rate	up to 933 l/min (56 m³/h)
Head up	Up to 20 m
Liquid temperature	up to +40℃
Maximum operating depth below water level	up to 5m
Medium pH	4~10
Max. Sand content	2%
Insulation Class	Class F
Protection Class	IP68

Pump housing	HT 200
Impeller	HT 200
Shaft	Stainless steel AISI 304
Motor bracket	HT 200

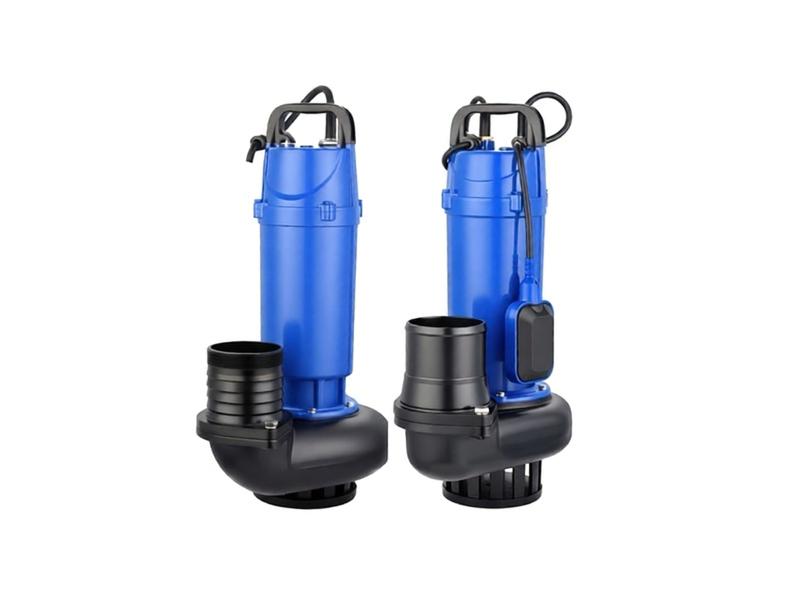

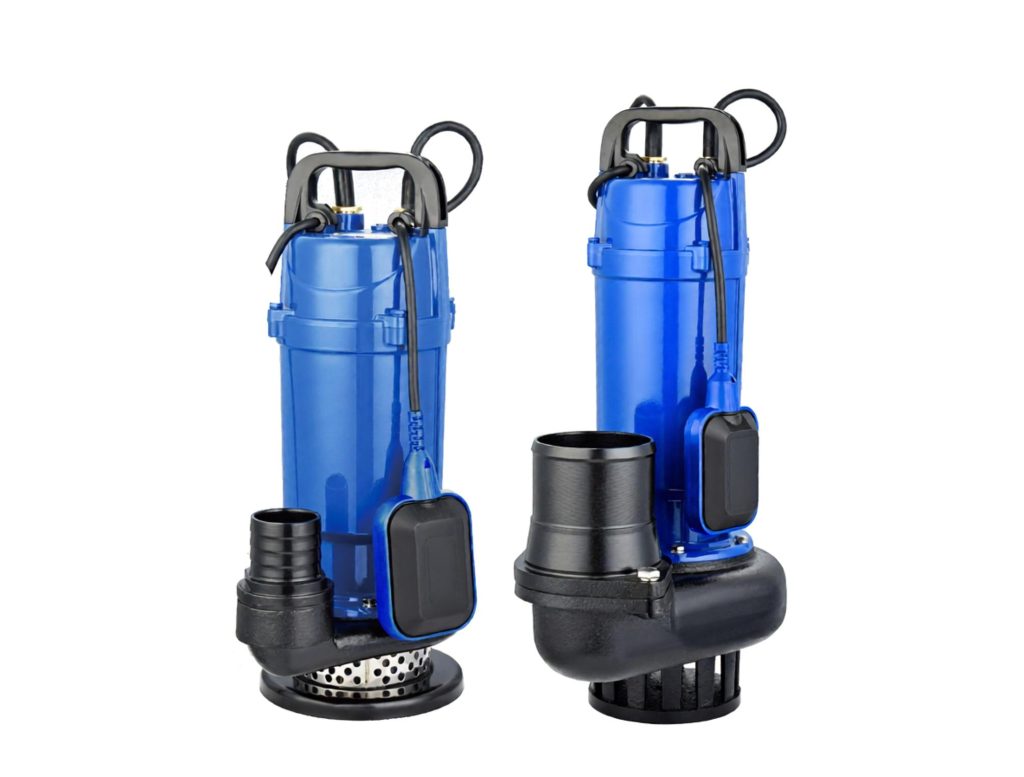

QDX-(F)A
Submersible Pump Series

QDX-(F)A series is the Submersible Pump Series, designed to transfer clean water free from abrasive particles and liquids that will not damage the pump’s components. Reliable, easy to operate, and cost-effective. Ideal for domestic applications such as irrigation & drainage, rural well pumping, daily water supply, ect.

Flow rate	up to 150 l/min (9 m³/h)
Head up	Up to 33 m
Liquid temperature	up to +40℃
Maximum operating depth below water level	up to 5m
Medium PH	6.5~8.5
Motor	2-pole
Insulation Class	class F
Protection Class	IP68

Pump housing	Cast Aluminum
Impeller	Cast Aluminum/PPO
Shaft	Stainless steel AISI 304
Motor bracket	HT 200

QDX-(F)B
Stainless Steel Submersible Pump Series

QDX-(F)B series is the Stainless Steel Submersible Pump Series, designed to transfer clean water free from abrasive particles and liquids that will not damage the pump’s components. Reliable, easy to operate, and cost-effective. Ideal for domestic applications such as irrigation & drainage, rural well pumping, daily water supply, ect.

Flow rate	up to 150 l/min (9 m³/h)
Head up	Up to 33 m
Liquid temperature	up to +40℃
Maximum operating depth below water level	up to 5m
Medium PH	6.5~8.5
Motor	2-pole
Insulation Class	class F
Protection Class	IP68

Pump housing	Stainless steel AISI 304
Impeller	Cast Aluminum/PPO
Shaft	Stainless steel AISI 304
Motor bracket	HT 200

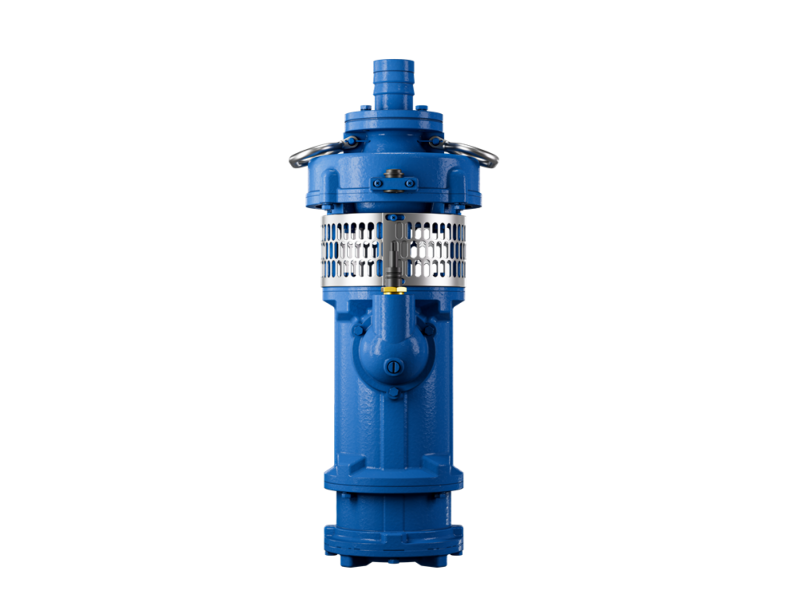

QY-C
Oil-filled Motor Multistage Submersible Pump

Oil-filled Motor Multistage Submersible Pump

Flow rate	up to 14166 l/min (250 m³/h)
Head up	Up to 100 m
Liquid temperature	up to +40℃
Maximum operating depth below water level	up to 5m
Insulation Class	class F
Protection Class	IP68

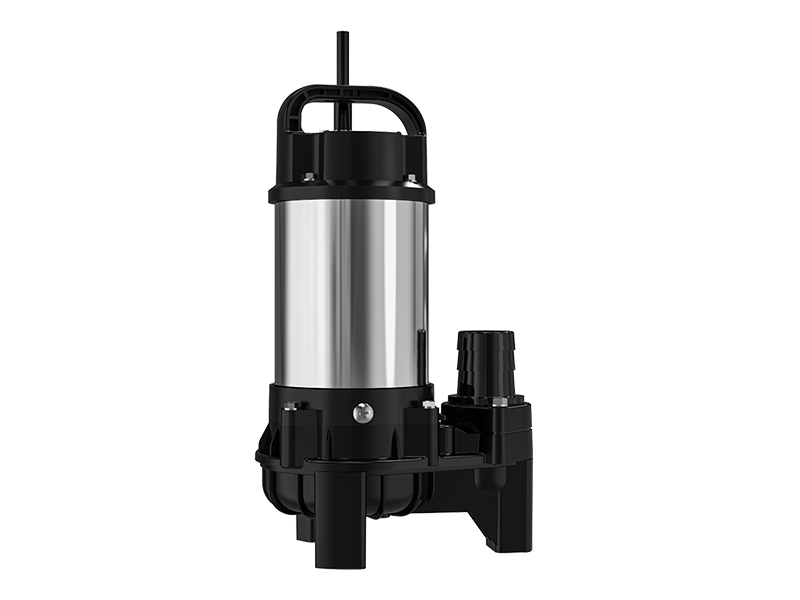

WQ(D)X
Submersible Resin Made Pumps

WQ(D)X is designed with remarkable features. It has an anti – wicking cable and built – in thermal motor protection, safeguarding the motor from overheating. High – grade bearings enable it to operate stably at high temperatures. Its patented air release valve and oil lifter design enhance performance. The back pull – out design simplifies inspections, and the dual inside mechanical seal prevents spring failures.

Flow rate	up to 750 l/min (45 m³/h)
Head up	Up to 12.5 m
Liquid temperature	up to +40℃
Maximum operating depth below water level	up to 5m
Medium PH	6~8.5
Max.Sand content	2%

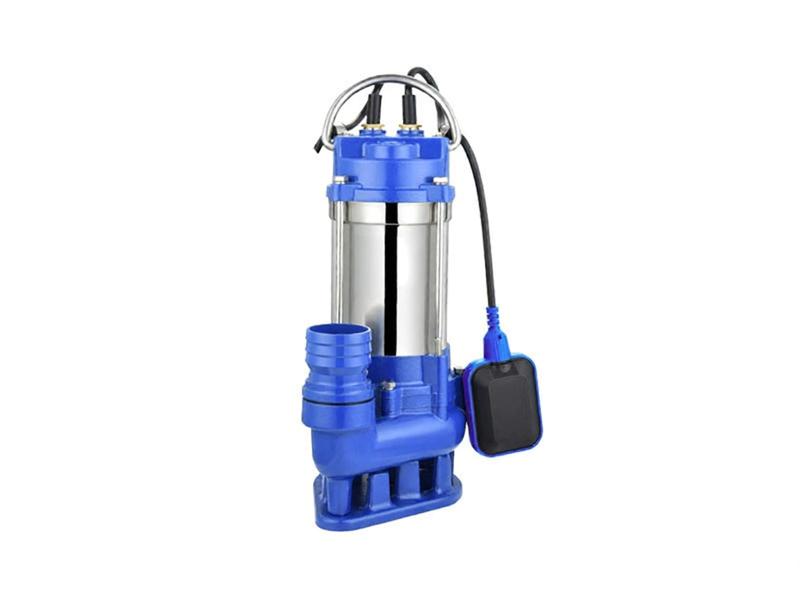

WQ(D)A
Stainless Steel Submersible Sewage Pump Series

WQ(D)A series is the Stainless Steel Submersible Sewage Pump Series, their design ensures user-friendly operation and safe performance, designed for dirty water and sewage drainage in domestic settings. Reliable, easy to operate, and cost-effective. Ideal for home and public applications such as wastewater treatment & drainage, river dredging, field irrigation, ect.

Flow rate	up to 250 l/min (15 m³/h)
Head up	Up to 25 m
Liquid temperature	up to +40℃
Maximum operating depth below water level	up to 5m
Medium PH	4~10
Motor	2-pole
Insulation Class	class F
Protection Class	IP68

Pump housing	Stainless steel AISI 304
Impeller	HT 200
Shaft	Stainless steel AISI 304
Motor bracket	HT 200

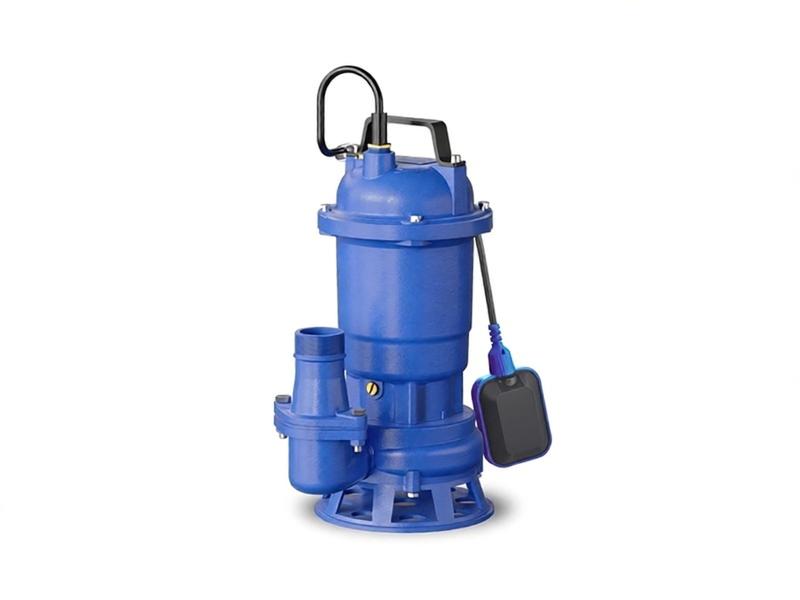

WQ(D)
Submersible Sewage Pump Series

WQ(D) series is the Submersible Sewage Pump Series, designed for dirty water and sewage drainage in domestic settings. Reliable, easy to operate, and cost-effective. Ideal for home and public applications such as wastewater treatment & drainage, river dredging, field irrigation, ect.

Flow rate	up to 333 l/min (20 m³/h)
Head up	Up to 25 m
Liquid temperature	up to +40℃
Maximum operating depth below water level	up to 5m
Medium PH	4~10
Motor	2-pole
Insulation Class	class F
Protection Class	IP68

Pump housing	HT 200
Impeller	HT 200
Shaft	Stainless steel AISI 304
Motor bracket	HT 200

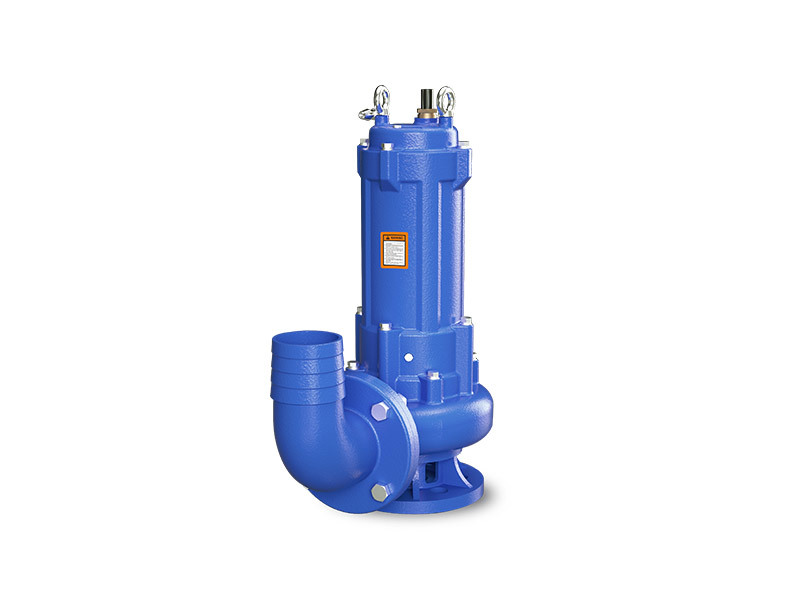

WQ-C
Submersible Sewage Pump Series

WQ-C series is the Submersible Sewage Pump Series, designed for dirty water and sewage drainage in domestic settings. Reliable, easy to operate, and cost-effective. Ideal for home and public applications such as wastewater treatment & drainage, river dredging, field irrigation, ect.water supply, automatic water sprinkler system, small HVAC or supporting equipment, etc.

Flow rate	up to 1667 l/min (100 m³/h)
Head up	Up to 54 m
Liquid temperature	up to +40℃
Maximum operating depth below water level	up to 5m
Medium PH	4~10
Motor	2-pole
Insulation Class	class F
Protection Class	IP68

Pump housing	HT 200
Impeller	HT 200
Shaft	Stainless steel AISI 304
Motor bracket	HT 200

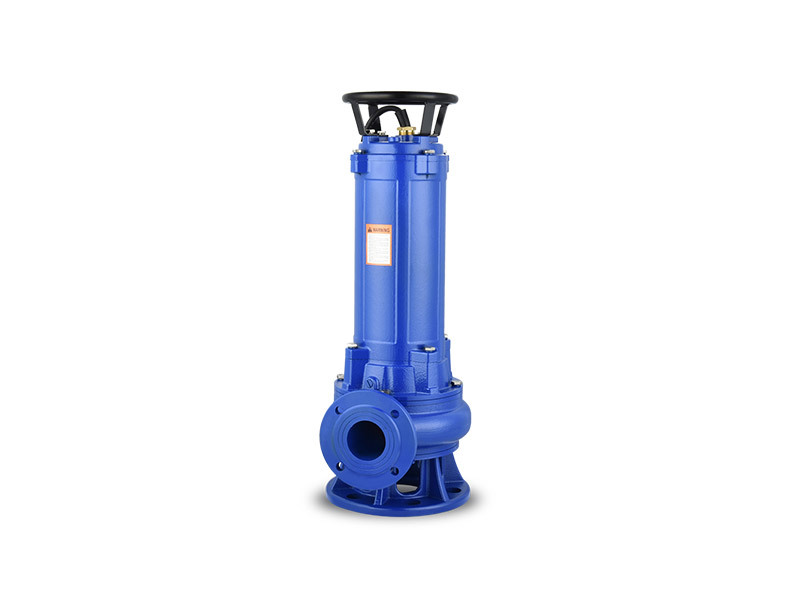

WQ-D
Submersible Sewage Pump Series

WQ-D series is the Submersible Sewage Pump Series, designed for dirty water and sewage drainage in domestic settings. Reliable, easy to operate, and cost-effective. Ideal for home and public applications such as wastewater treatment & drainage, river dredging, field irrigation, ect.

Flow rate	up to 1667 l/min (100 m³/h)
Head up	Up to 54 m
Liquid temperature	up to +40℃
Maximum operating depth below water level	up to 5m
Medium PH	4~10
Motor	2-pole
Insulation Class	class F
Protection Class	IP68

Pump housing	HT 200
Impeller	HT 200
Shaft	Stainless steel AISI 304
Motor bracket	HT 200

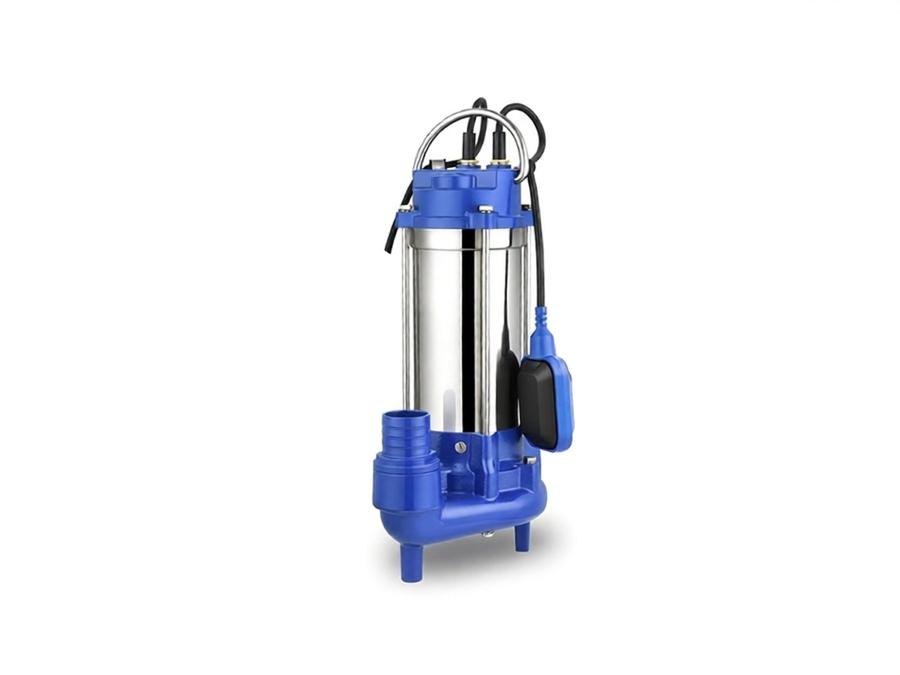

WQ-QG(≤1.5kW)
Submersible Sewage Pump with cutting system Series

WQ-QG(≤1.5kW) series is theSubmersible Sewage Pump with cutting system Series, designed for dirty water and sewage drainage in domestic settings. Reliable, easy to operate, and cost-effective. Ideal for home and public applications such as wastewater treatment & drainage, river dredging, field irrigation, ect.

Flow rate	up to 333 l/min (20 m³/h)
Head up	Up to 18.4 m
Liquid temperature	up to +40℃
Maximum operating depth below water level	up to 5m
Medium PH	4~10
Motor	2-pole
Insulation Class	class B
Protection Class	IP68

Pump housing	HT 200
Impeller	HT 200
Shaft	Stainless steel AISI 304
Motor bracket	HT 200

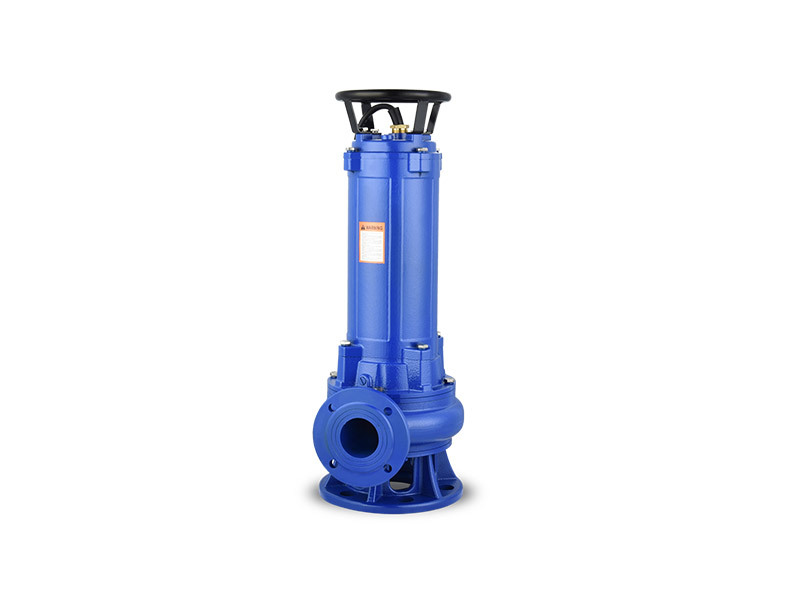

WQ-QG(≥2.2kW)
Submersible Sewage Pump with cutting system Series

WQ-QG(≥2.2kW) series is the Submersible Sewage Pump with cutting system Series, designed for dirty water and sewage drainage in domestic settings. Reliable, easy to operate, and cost-effective. Ideal for home and public applications such as wastewater treatment & drainage, river dredging, field irrigation, ect.

Flow rate	up to2667 l/min (160 m³/h)
Head up	Up to 38 m
Liquid temperature	up to +40℃
Maximum operating depth below water level	up to 5m
Medium PH	4~10
Motor	2-pole
Insulation Class	class B
Protection Class	IP68

Pump housing	HT 200
Impeller	HT 200
Shaft	Stainless steel AISI 304
Motor bracket	HT 200

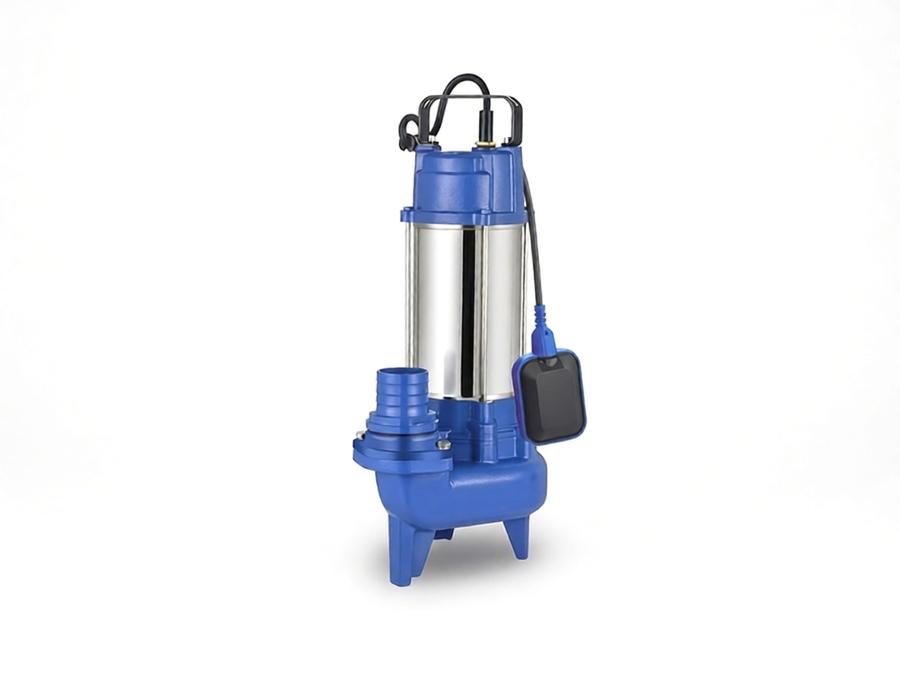

WQ(D)X
Submersible Sewage Pump Series

WQ(D)X series is the Submersible Sewage Pump, designed for dirty water and sewage drainage in domestic settings. Reliable, easy to operate, and cost-effective. Ideal for home and public applications such as wastewater treatment & drainage, river dredging, drainage station and field irrigation, ect.

Flow rate	up to 967 l/min (58 m3/h)
Head up	Up to 20 m
Liquid temperature	up to +40℃
Maximum operating depth below water level	up to 5m
Medium PH	4~10
Motor	2-pole
Insulation Class	class B
Protection Class	IP68

Pump housing	HT 200
Impeller	HT 200
Shaft	Stainless steel AISI 304
Motor bracket	HT 200

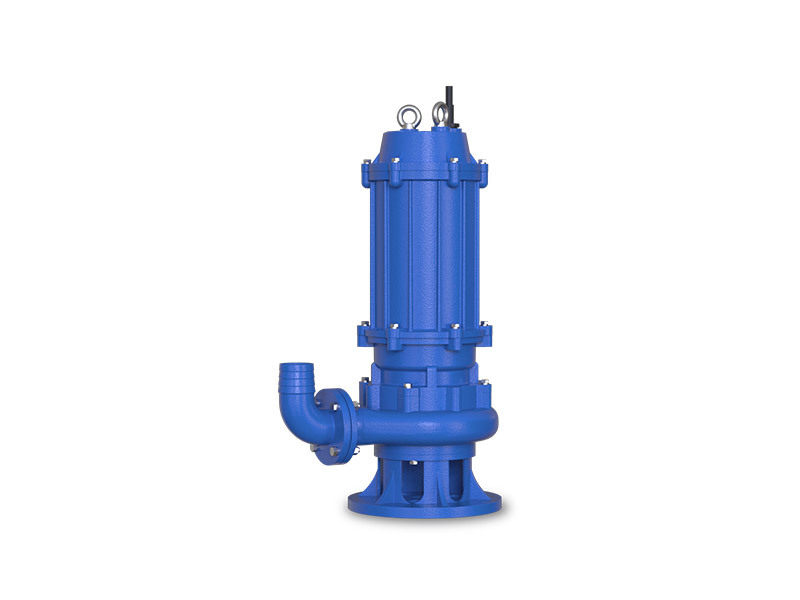

WQ
High-flow Submersible Sewage Pump Series

WQ series is the High-flow Submersible Sewage Pump Series, designed for dirty water and sewage drainage in domestic settings. Reliable, easy to operate, and cost-effective. Ideal for home and public applications wastewater treatment & drainage, river dredging, field irrigation, ect.

Flow rate	up to 4583 l/min (275 m3/h)
Head up	Up to 70 m
Liquid temperature	up to +40℃
Maximum operating depth below water level	up to 5m
Medium PH	4~10
Motor	2-pole
Insulation Class	class B
Protection Class	IP68

Pump housing	HT 200
Impeller	HT 200
Shaft	Stainless steel AISI 304
Motor bracket	HT 200

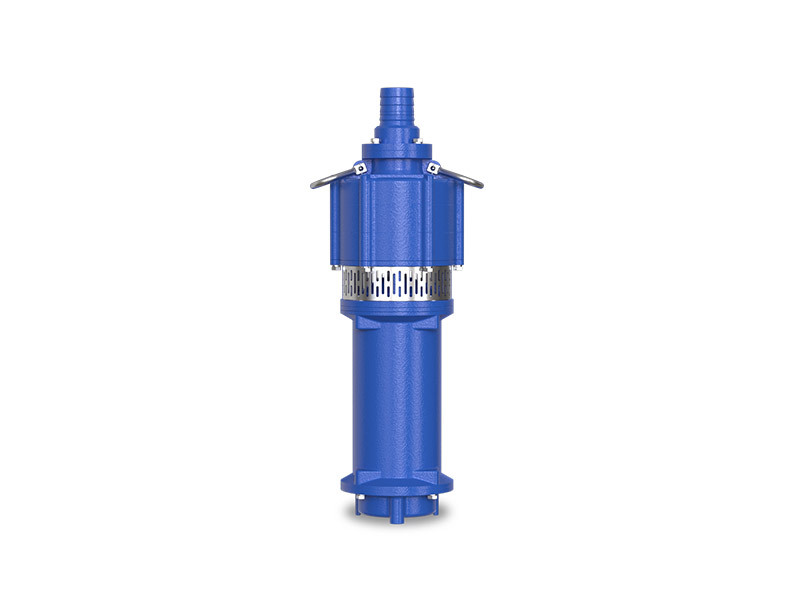

QD
Submersible Pump Dry-Type Motor Series

QD series is the Submersible Pump Dry-Type Motor Series, equipped with double shaft seal, designed for water circulation and water changing. Reliable, easy to operate, and cost-effective. Ideal for home and public applications such as sprinkler system and garden irrigation, landscape waterfall, ect.

Flow rate	up to 433 l/min (26 m³/h)
Head up	Up to 145 m
Liquid temperature	up to +40℃
Maximum operating depth below water level	up to 5m
Medium PH	6 ~ 8.5
Motor	2-pole
Insulation Class	class F
Protection Class	IP68

Pump housing	HT 200
Impeller	Cast Aluminium
Shaft	Stainless steel AISI 304
Motor bracket	HT 200

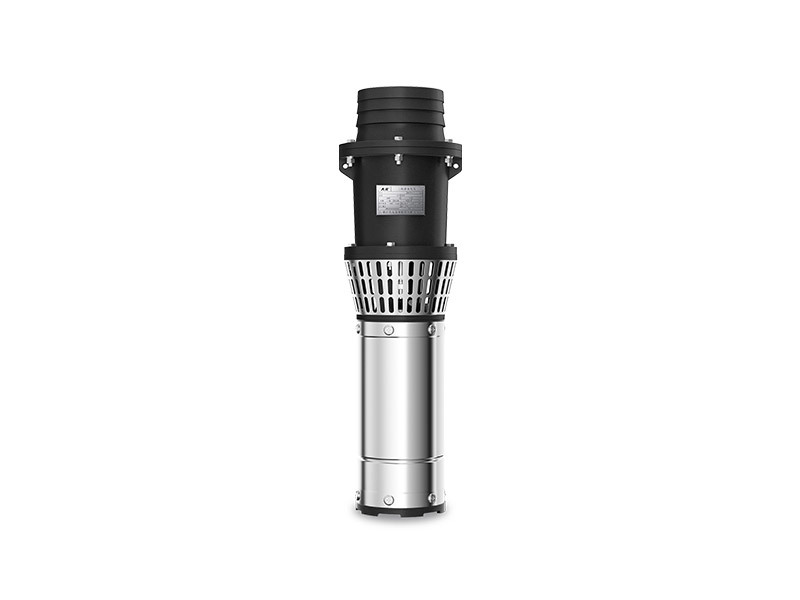

Q(Y)-L
Light-weight Farming Pump Series

Q(Y)-L series is the Light-weight Farming Pump Series are equipped with three main parts: the water pump,the dry-type motor and the sealing system. The motor is three-phase dry-type asynchronous motor based at the bottom of the pump,while the water pump is on the top of the motor and has centrifugal type impeller and axial-flow type impeller. Ideal for home and public applications such as fishery water supply, aquarium, landscape waterfall and farming, etc.

Flow rate	up to 3333 l/min (200 m³/h)
Head up	up to 25 m
Liquid temperature	up to +40℃
Maximum operating depth below water level	up to 5m
Medium PH	6 ~ 8.5
Motor	2-pole
Insulation Class	class F
Protection Class	IP68

Pump housing	PA
Impeller	PA
Shaft	Stainless steel AISI 304
Motor bracket	Stainless steel AISI 304

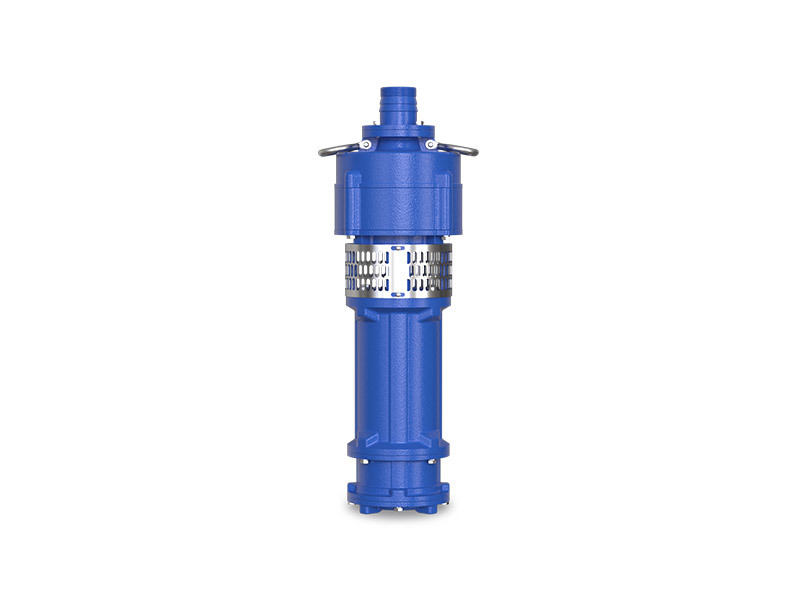

QY
Submersible Pump – Oil Filled Motor Series

QY series is the Submersible Pump – Oil Filled Motor Series, equipped with double shaft seal, designed for water circulation and water changing. Reliable, easy to operate, and cost-effective. Ideal for home and public applications such as sprinkler system and garden irrigation, landscape waterfall, ect

Flow rate	up to 667 l/min (40 m³/h)
Head up	Up to m
Liquid temperature	up to +40℃
Maximum operating depth below water level	up to 5m
Medium PH	6 ~ 8.5
Motor	2-pole
Insulation Class	class F
Protection Class	IP68

Pump housing	HT 200
Impeller	Cast aluminium
Shaft	Stainless steel AISI 304
Motor bracket	HT 200

QDX-(F)A
Stainless Steel Submersible Pump Series

QDX-(F)A series is the Submersible Pump Series, designed to transfer clean water free from abrasive particles and liquids that will not damage the pump’s components. Reliable, easy to operate, and cost-effective. Ideal for residential applications such as irrigation & drainage, rural well pumping, daily water supply, ect.

Flow rate	up to 150 l/min (9 m³/h)
Head up	Up to 33 m
Liquid temperature	up to +40℃
Maximum operating depth below water level	up to 5m
Medium PH	6.5~8.5
Motor	2-pole
Insulation Class	class F
Protection Class	IP68

Pump housing	HT 150
Impeller	Cast Aluminum/PPO
Shaft	Stainless steel AISI 304
Motor bracket	HT 200

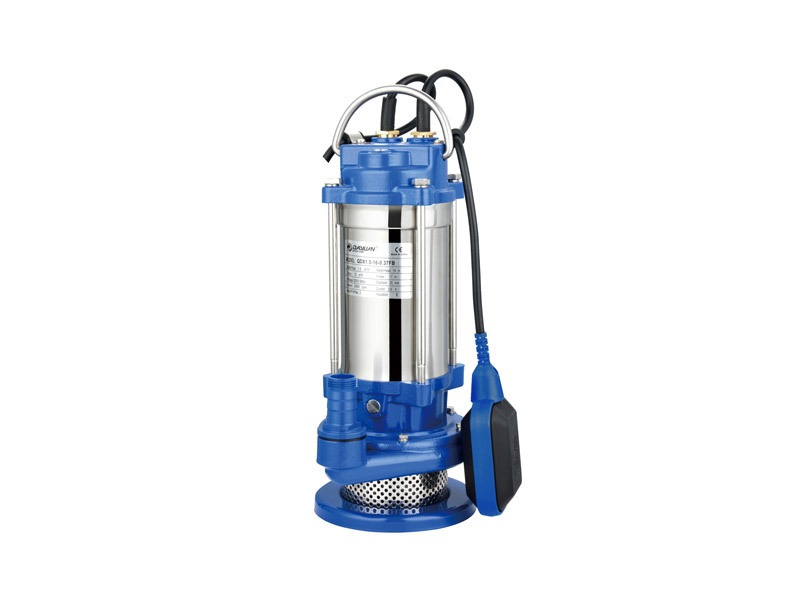

QDX-(F)B
Stainless Steel Submersible Pump Series

QDX-(F)B series is the Stainless Steel Submersible Pump Series, designed to transfer clean water free from abrasive particles and liquids that will not damage the pump’s components. Reliable, easy to operate, and cost-effective. Ideal for residential applications such as irrigation & drainage, rural well pumping, daily water supply, ect.

Flow rate	up to 150 l/min (9 m³/h)
Head up	Up to 33 m
Liquid temperature	up to +40℃
Maximum operating depth below water level	up to 5m
Medium PH	6.5~8.5
Motor	2-pole
Insulation Class	class F
Protection Class	IP68

Pump housing	HT 150
Impeller	Cast Aluminum/PPO
Shaft	Stainless steel AISI 304
Motor bracket	HT 150
