IEC-YT2 series 3 Phase Asynchronous Motors For Axial Flow Fan

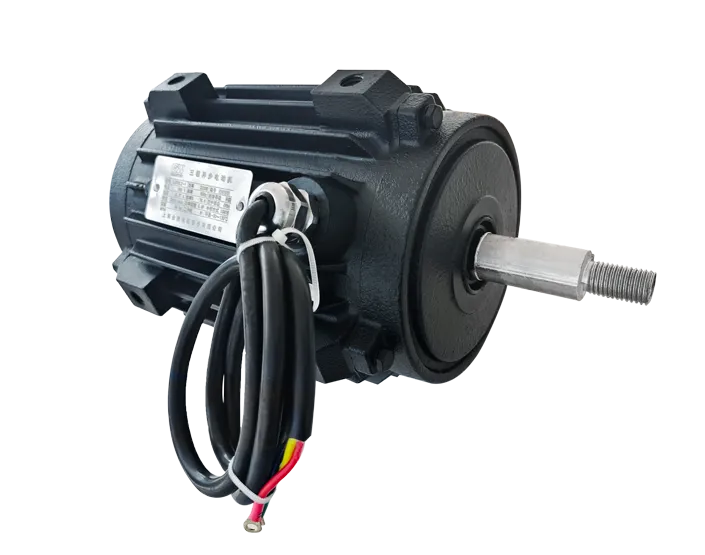

YT2 series 3 Phase Asynchronous Motors For Axial Flow Fan

YT2系列轴流风机用三相异步电动机是为轴流通风机设计的专用电动机，适用于船舶、风电、海上平台及其它
应用场合的通风设备。YT2系列电动机为全封闭、鼠笼型电动机，具有高效、节能、起动转矩大、性能好、噪声低
等优点。
The YT2 series three-phase asynchronous motor for axial flow fans is a specialized motor designed for axial flow fans, suitable for ventilation equipment in ships, wind power, offshore platforms, and other applications.

The YT2 series motor is a fully enclosed, squirrel cage type motor, which has the advantages of high efficiency, energy conservation, high starting torque, good performance, and low noise.

特征

· 机座号范围： 80~280
· 功率范围： 0.75KW-90KW
· 极数范围： 2P～8P
· 额定频率: 50Hz或60Hz;
· 额定电压: 380V或440V;
· 冷却方式： IC418
· 绝缘等级: F或H
· 防护等级： IP55或IP56
· 工作制：S1 连续
· 使用条件：海拔不超过1000m。环境温度随季节变
化，但最高不超过+45℃，最低不低于-15℃。

Features

· Frame Size： 80~280
· Output Power： 0.75KW-90KW
· Poles： 2P ～ 8P
· Rated Frequency： 50Hz or 60Hz
· Rated Voltage： 380V or 440V
· Cooling Type： IC418
· Insulation class： F or H
· Protection： IP55 or IP56
· Duty： S1 Continuous
· Circumstance For Use: The altitude shall not exceed
1000m above sea level. The ambient temperature shall
not exceed 45℃ and not less than -15℃.

Performance Data(380V 50Hz)
TYPE	Kw	Current	Speed	Rated Torque	Maximum torque/rated torque	Locked rotor torque/rated torque	Locked rotor current/rated current
TYPE	Kw	A	r/min	N.m	TN	TN	IN
YT2-801-2	0.75	1.8	2825	2.54	2.3	2.2	6.1
YT2-802-2	1.1	2.6	2825	3.72	2.3	2.2	7
YT2-90S-2	1.5	3.4	2840	5.04	2.3	2.2	7
YT2-90L-2	2.2	4.9	2840	7.4	2.3	2.2	7
YT2-100L-2	3	6.3	2880	9.95	2.3	2.2	7.5
YT2-112M-2	4	8.1	2890	13.2	2.3	2.2	7.5
YT2-132S1-2	5.5	11	2900	18.1	2.3	2.2	7.5
YT2-132S2-2	7.5	14.9	2900	24.7	2.3	2.2	7.5
YT2-160M1-2	11	21.3	2930	35.9	2.3	2.2	7.5
YT2-160M2-2	15	28.8	2930	48.9	2.3	2.2	7.5
YT2-160L-2	18.5	34.7	2930	60.3	2.3	2.2	7.5
YT2-180M-2	22	41	2940	71.5	2.3	2	7.5
YT2-200L1-2	30	55.5	2950	97.1	2.3	2	7.5
YT2-200L2-2	37	67.9	2950	119.8	2.3	2	7.5
YT2-225M-2	45	82.3	2970	144.7	2.3	2	7.5
YT2-250M-2	55	100.4	2970	176.8	2.3	2	7.5
YT2-280S-2	75	134.4	2970	241.2	2.3	2	7.5
YT2-280M-2	90	160.2	2970	289.4	2.3	2	7.5
YT2-80M2-4	0.75	2	1390	5.6	2.3	2.3	6
YT2-90S-4	1.1	2.9	1400	7.5	2.3	2.3	6
YT2-90L-4	1.5	3.7	1400	10.2	2.3	2.3	6
YT2-100L1-4	2.2	5.2	1420	14.8	2.3	2.3	7
YT2-100L2-4	3	6.8	1420	20.2	2.3	2.3	7
YT2-112M-4	4	8.8	1440	26.5	2.3	2.3	7
YT2-132S-4	5.5	11.8	1440	36.5	2.3	2.3	7
YT2-132M-4	7.5	15.6	1440	49.7	2.3	2.3	7
YT2-160M-4	11	22.3	1460	71.6	2.3	2.2	7
YT2-160L-4	15	30.1	1460	98.1	2.3	2.2	7.5
YT2-180M-4	18.5	36.5	1470	120.2	2.3	2.2	7.5
YT2-180L-4	22	43.2	1470	142.9	2.3	2.2	7.5
YT2-200L-4	30	57.6	1480	161.0	2.3	2.2	7.2
YT2-225S-4	37	69.9	1480	198.5	2.3	2.2	7.2
YT2-225M-4	45	84.7	1480	290.4	2.3	2.2	7.2
YT2-250M-4	55	103.3	1480	354.9	2.3	2.2	7.2
YT2-280S-4	75	139.6	1480	484.0	2.3	2.2	7.2
YT2-280M-4	90	166.9	1485	578.8	2.3	2.2	7.2
YT2-90S-6	0.75	2.3	910	7.9	2.1	2	6
YT2-90L-6	1.1	3.2	910	11.5	2.1	2	6
YT2-100L-6	1.5	3.9	940	15.2	2.1	2	6
YT2-112M-6	2.2	5.6	940	22.4	2.1	2	6.5
YT2-132S-6	3	7.4	960	29.8	2.1	2.1	6.5
YT2-132M1-6	4	9.9	960	39.8	2.1	2.1	6.5
YT2-132M2-6	5.5	12.9	960	54.7	2.1	2.1	6.5
YT2-160M-6	7.5	16.9	970	73.8	2.1	2	6.5
YT2-160L-6	11	24.2	970	108.3	2.1	2	6.5
YT2-180L-6	15	31.6	970	147.7	2.1	2	7
YT2-200L1-6	18.5	38.6	970	182.1	2.1	2.1	7
YT2-200L2-6	22	44.7	970	216.6	2.1	2.1	7
YT2-225M-6	30	59.3	980	292.4	2.1	2	7
YT2-250M-6	37	71.1	980	360.6	2.1	2.1	7
YT2-280S-6	45	85.9	980	438.5	2	2.1	7
YT2-280M-6	55	104.7	980	536.0	2	2.1	7
YT2-100L1-8	0.75	2.4	700	10.2	2	1.8	6
YT2-100L2-8	1.1	3.3	700	15.0	2	1.8	6
YT2-112M-8	1.5	4.4	700	20.5	2	1.8	6
YT2-132S-8	2.2	6	710	29.6	2	1.8	6
YT2-132M-8	3	7.9	710	40.4	2	1.8	6
YT2-160M1-8	4	10.3	720	53.1	2	1.9	6
YT2-160M2-8	5.5	13.6	720	72.6	2	2	6
YT2-160L-8	7.5	17.8	720	99.5	2	2	6
YT2-180L-8	11	25.1	730	143.9	2	2	6.6
YT2-200L-8	15	34.1	730	196.2	2	2	6.6
YT2-225S-8	18.5	41.1	730	242.0	2	1.9	6.6
YT2-225M-8	22	47.5	730	287.8	2	1.9	6.6
YT2-250M-8	30	63.4	730	392.5	2	1.9	6.6
YT2-280S-8	37	77.8	730	484.0	2	1.9	6.6
YT2-280M-8	45	94.1	740	580.7	2	1.9	6.6

YT2 series 3 Phase Asynchronous Motors For Axial Flow Fan Download
