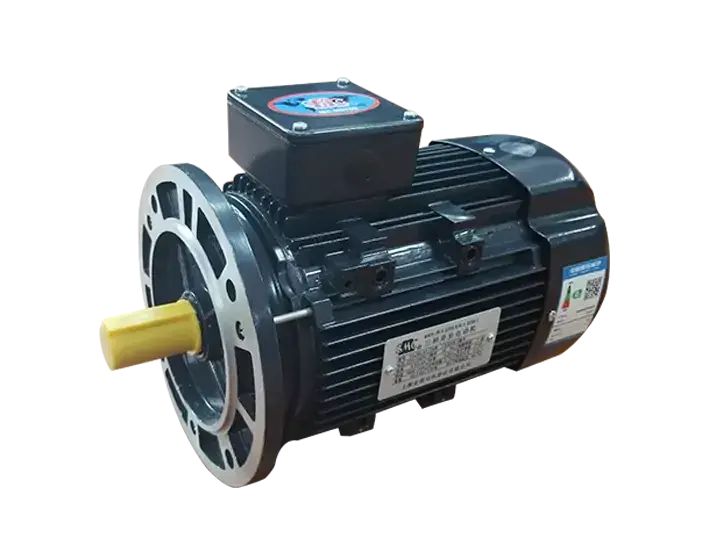

IEC-Metric YSJ Series Three-Phase Motors

IEC Metric YSJ Series Three-Phase Motors

· IEC standard design.
· High efficiency, IE-3 and China Efficiency Class 3 (GB18613-2020).
· High quality of starting performance.
· Fit for full-load starting machine and equipment application.
· The terminal box can meet the requirements of left out, top out and right out. Mounting:B3,B14,B34,B5,B35.

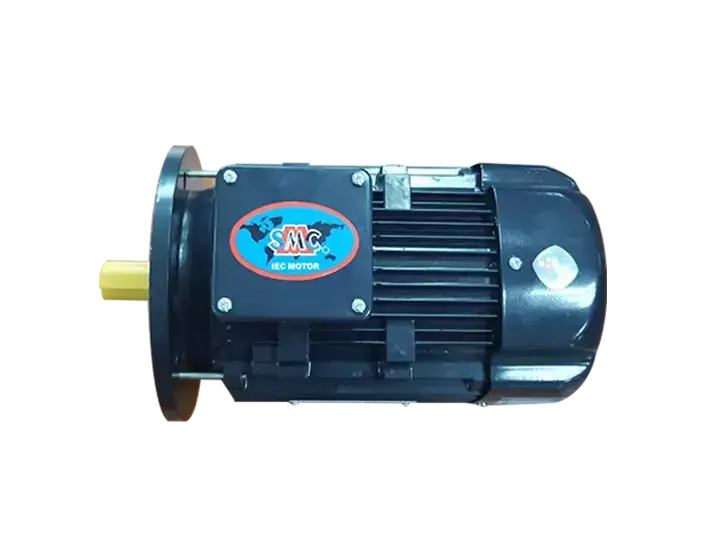

IEC Metric YSJ Series Three-Phase Motors2

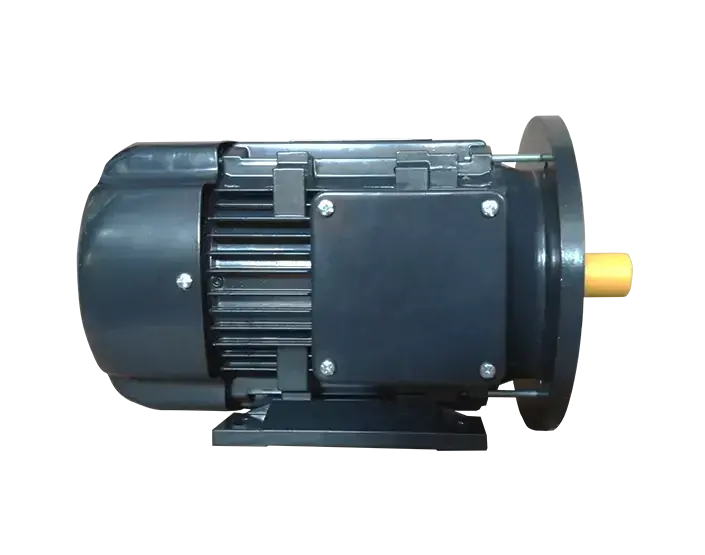

IEC Metric YSJ Series Three-Phase Motors3

特征

· YSJ系列压铸铝机壳三相异步电动机包括：63，71，80，
90，100，112，132 七个机座;
· 该系列电机外形符合IEC标准，效率符合GB18613-2020 3级
国家能效标准;
· 该系列电机外形符合IEC标准，效率符合欧洲IE3能效标准;
· 符合中国国家能源机构核准的高效（YSJ)电动机;
· 接线盒可以满足左出，顶出，右出;
· 可拆卸式底脚，满足安装于电机的下、左、右三个方向。

Features

· IEC standard design.
· High efficiency, IE-3 and China Efficiency Class 3(GB18613-2020).
· High quality of starting performance.
· Fit for full-load starting machine and equipment application.
· The terminal box can meet the requirements of left out, top out
and right out.
· Mounting:B3,B14,B34,B5,B35.

Series:	YSJ	Frame construction:	Aluminium
Frame size:	63 – 132	IP code:	IP55
Power output:	0.18- 7.5kW	Insulation Class :	F
Voltages:	220/380V	Cooling method:	IC411
Number of poles:	2, 4, 6, 8	Certificates:	CCC, CE
Ambient Temperature :	40 °C	Mounting arrangements:	B3, B14, B5, B34, B35

HP/KW	RPM	FRAME	GW TYPE	VOLTAGE V	CURRENT A	FREQ	INS.	S.F.	IP CODE	DUTY	WGT LB/KG
0.16/0.12	1400	63	YSJ6314H	220/380	0.83/0.48	50	F	1.0	IP55	S1	9.5/4.3
0.25/0.18	2800	63	YSJ6312H	220/380	0.91/0.53	50	F	1.0	IP55	S1	10.0/4.5
0.25/0.18	1400	63	YSJ6324H	220/380	1.12/0.65	50	F	1.0	IP55	S1	10.6/4.8
0.25/0.18	920	71	YSJ7116H	220/380	1.35/0.78	50	F	1.0	IP55	S1	12.6/5.7
0.33/0.25	2800	63	YSJ6322H	220/380	1.17/0.68	50	F	1.0	IP55	S1	11.0/5.0
0.33/0.25	1400	71	YSJ7114H	220/380	1.44/0.83	50	F	1.0	IP55	S1	13.2/6.0
0.33/0.25	920	71	YSJ7126H	220/380	1.52/0.88	50	F	1.0	IP55	S1	14.5/6.6
0.50/0.37	2800	71	YSJ7112H	220/380	1.65/0.96	50	F	1.0	IP55	S1	13.0/5.9
0.50/0.37	1400	71	YSJ7124H	220/380	1.9/1.1	50	F	1.0	IP55	S1	15.4/7.0
0.50/0.37	920	80	YSJ8016H	220/380	2.1/1.2	50	F	1.0	IP55	S1	22.5/10.2
0.75/0.55	2800	71	YSJ7122H	220/380	2.33/1.35	50	F	1.0	IP55	S1	15.0/6.8
0.75/0.55	1420	80	YSJ8014H	220/380	2.6/1.5	50	F	1.0	IP55	S1	22.0/10.0
0.75/0.55	920	80	YSJ8026H	220/380	2.8/1.6	50	F	1.0	IP55	S1	25.1/11.4
1.0/0.75	2820	80	YSJ8012H	220/380	3.0/1.7	50	F	1.0	IP55	S1	21.0/9.5
1.0/0.75	1420	80	YSJ8024H	220/380	3.26/1.88	50	F	1.0	IP55	S1	24.9/11.3
1.0/0.75	950	90	YSJ90S6H	220/380	3.5/2.0	50	F	1.0	IP55	S1	34.4/15.6
1.0/0.75	700	100	YSJ100L1-8H	380	2.3	50	F	1.0	IP55	S1	50.7/23.0
1.5/1.1	2880	80	YSJ8022H	220/380	4.2/2.4	50	F	1.0	IP55	S1	24.5/11.1
1.5/1.1	1440	90	YSJ90S4H	220/380	4.5/2.6	50	F	1.0	IP55	S1	35.9/16.3
1.5/1.1	950	90	YSJ90L6H	220/380	5.2/3.0	50	F	1.0	IP55	S1	37.0/16.8
1.5/1.1	700	100	YSJ100L2-8H	380	3.2	50	F	1.0	IP55	S1	61.7/28.0
2.0/1.5	2900	90	YSJ90S2H	220/380	5.5/3.2	50	F	1.0	IP55	S1	35.7/16.2
2.0/1.5	1440	90	YSJ90L4H	220/380	6.1/3.5	50	F	1.0	IP55	S1	38.6/17.5
2.0/1.5	950	100	YSJ100L-6H	380	3.9	50	F	1.0	IP55	S1	54.0/24.5
2.0/1.5	700	112	YSJ112M-8H	380	4.4	50	F	1.0	IP55	S1	64.0/29.0
3.0/2.2	2900	90	YSJ90L2H	220/380	7.8/4.5	50	F	1.0	IP55	S1	39.0/17.7
3.0/2.2	1440	100	YSJ100L1-4H	380	4.7	50	F	1.0	IP55	S1	62.8/28.5
3.0/2.2	950	112	YSJ112M-6H	380	5.3	50	F	1.0	IP55	S1	65.0/29.5
3.0/2.2	720	132	YSJ132S-8H	380	6.0	50	F	1.0	IP55	S1	90.4/41.0
4.0/3.0	2880	100	YSJ100L-2H	380	6.0	50	F	1.0	IP55	S1	66.1/30.0
4.0/3.0	1440	100	YSJ100L2-4H	380	6.3	50	F	1.0	IP55	S1	66.1/30.0
4.0/3.0	960	132	YSJ132S-6H	380	6.9	50	F	1.0	IP55	S1	83.8/38.0
4.0/3.0	720	132	YSJ132M-8H	380	7.7	50	F	1.0	IP55	S1	110.2/50.0
5.5/4.0	2900	112	YSJ112M-2H	380	7.6	50	F	1.0	IP55	S1	62.8/28.5
5.5/4.0	1450	112	YSJ112M-4H	380	8.4	50	F	1.0	IP55	S1	80.5/36.5
5.5/4.0	960	132	YSJ132M1-6H	380	9.0	50	F	1.0	IP55	S1	99.2/45.0
7.5/5.5	2910	132	YSJ132S1-2H	380	10.5	50	F	1.0	IP55	S1	90.4/41.0
7.5/5.5	1455	132	YSJ132S-4H	380	11.0	50	F	1.0	IP55	S1	101.4/46.0
7.5/5.5	960	132	YSJ132M2-6H	380	12.1	50	F	1.0	IP55	S1	119.0/54.0
10.0/7.5	2910	132	YSJ132S2-2H	380	13.9	50	F	1.0	IP55	S1	105.8/48.0
10.0/7.5	1455	132	YSJ132M-4H	380	14.7	50	F	1.0	IP55	S1	114.6/52.0
