IEC-IE4 High Efficiency Three Phase Induction Motor

IE4 High Efficiency Three Phase Induction Motor

· IEC standard design.
· High efficiency, IE-4 and China Efficiency Class 2 (GB18613-2020).
· High quality of starting performance.
· Fit for full-load starting machine and equipment application.
· The terminal box can meet the requirements of left out, top out and right out. Mounting:B3,B14,B34,B5,B35.
· Voltage optional400、415V

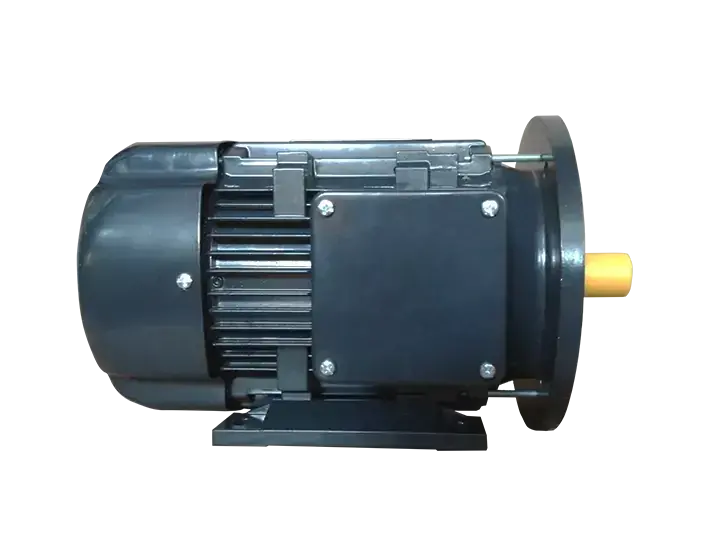

IE4 High Efficiency Three Phase Induction Motor3

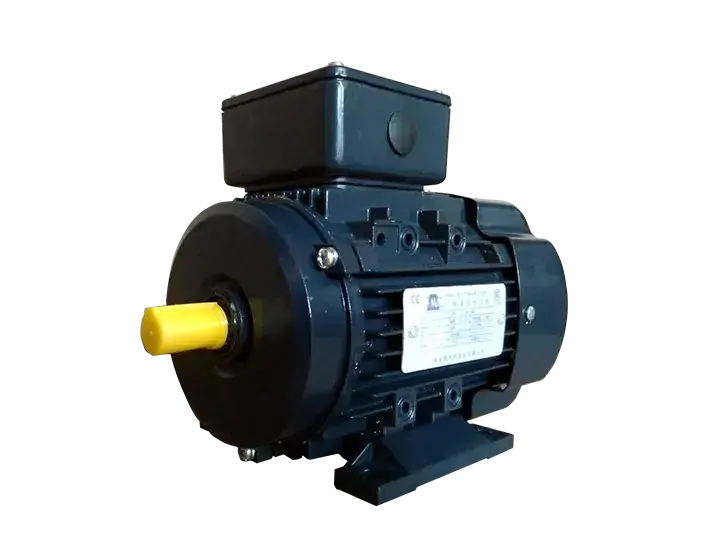

IE4 High Efficiency Three Phase Induction Motor4

特征

· YSJ系列压铸铝机壳三相异步电动机包括：63，71，80，
90，100，112，132 七个机座;
· 该系列电机外形符合IEC标准，效率符合GB18613-2020 3级
国家能效标准;
· 该系列电机外形符合IEC标准，效率符合欧洲IE3能效标准;
· 符合中国国家能源机构核准的高效（YSJ)电动机;
· 接线盒可以满足左出，顶出，右出;
· 可拆卸式底脚，满足安装于电机的下、左、右三个方向。

Features

· IEC standard design.
· High efficiency, IE-3 and China Efficiency Class 3(GB18613-2020).
· High quality of starting performance.
· Fit for full-load starting machine and equipment application.
· The terminal box can meet the requirements of left out, top out and right out.
· Mounting:B3,B14,B34,B5,B35.

HP/KW	RPM	FRAME	GW TYPE	VOLTAGE V	CURRENT A	FREQ	INS.	S.F.	IP CODE	DUTY	WGTLB/KG
0.16/0.12	1400	63	YSJ6314G	220/380	0.78/0.45	50	F	1.0	IP55	S1	9.5/4.3
0.25/0.18	2800	63	YSJ6312G	220/380	0.90/0.52	50	F	1.0	IP55	S1	10.0/4.5
0.25/0.18	1400	63	YSJ6324G	220/380	1.07/0.62	50	F	1.0	IP55	S1	10.6/4.8
0.25/0.18	920	71	YSJ7116G	220/380	1.21/0.70	50	F	1.0	IP55	S1	14.5/6.6
0.33/0.25	2800	63	YSJ6322G	220/380	1.14/0.66	50	F	1.0	IP55	S1	11.0/5.0
0.33/0.25	1400	71	YSJ7114G	220/380	1.29/0.75	50	F	1.0	IP55	S1	13.9/6.3
0.33/0.25	920	71	YSJ7126G	220/380	1.52/0.88	50	F	1.0	IP55	S1	17.2/7.8
0.50/0.37	2800	71	YSJ7112G	220/380	1.55/0.90	50	F	1.0	IP55	S1	14.5/6.6
0.50/0.37	1400	71	YSJ7124G	220/380	1.81/1.05	50	F	1.0	IP55	S1	17.2/7.8
0.50/0.37	930	80	YSJ8016G	220/380	1.87/1.08	50	F	1.0	IP55	S1	22.5/10.2
0.75/0.55	2800	71	YSJ7122G	220/380	2.25/1.30	50	F	1.0	IP55	S1	17.2/7.8
0.75/0.55	1420	80	YSJ8014G	220/380	2.51/1.45	50	F	1.0	IP55	S1	22.0/10.0
0.75/0.55	930	80	YSJ8026G	220/380	2.68/1.55	50	F	1.0	IP55	S1	25.1/11.4
1.0/0.75	2850	80	YSJ8012G	220/380	2.85/1.65	50	F	1.0	IP55	S1	22.0/10.0
1.0/0.75	1420	80	YSJ8024G	220/380	3.12/1.80	50	F	1.0	IP55	S1	26.4/12.0
1.0/0.75	950	90	YSJ90S6G	220/380	3.30/1.90	50	F	1.0	IP55	S1	34.4/15.6
1.0/0.75	700	100	YSJ100L1-8G	380	2.3	50	F	1.0	IP55	S1	50.7/23.0
1.5/1.1	2850	80	YSJ8022G	220/380	4.07/2.35	50	F	1.0	IP55	S1	26.2/11.9
1.5/1.1	1440	90	YSJ90S4G	220/380	4.33/2.50	50	F	1.0	IP55	S1	36.8/16.7
1.5/1.1	950	90	YSJ90L6G	220/380	4.93/2.85	50	F	1.0	IP55	S1	40.3/18.3
1.5/1.1	700	100	YSJ100L2-8G	380	3.2	50	F	1.0	IP55	S1	57.3/26.0
2.0/1.5	2900	90	YSJ90S2G	220/380	5.37/3.10	50	F	1.0	IP55	S1	35.7/16.2
2.0/1.5	1440	90	YSJ90L4G	220/380	5.72/3.30	50	F	1.0	IP55	S1	42.5/19.3
2.0/1.5	950	100	YSJ100L-6G	380	3.9	50	F	1.0	IP55	S1	59.5/27.0
2.0/1.5	700	112	YSJ112M-8G	380	4.2	50	F	1.0	IP55	S1	68.3/31.0
3.0/2.2	2900	90	YSJ90L2G	220/380	7.80/4.50	50	F	1.0	IP55	S1	40.1/18.2
3.0/2.2	1440	100	YSJ100L1-4G	380	4.7	50	F	1.0	IP55	S1	63.9/29.0
3.0/2.2	950	112	YSJ112M-6G	380	5.5	50	F	1.0	IP55	S1	70.5/32.0
3.0/2.2	720	132	YSJ132S-8G	380	5.9	50	F	1.0	IP55	S1	96.9/44.0
4.0/3.0	2880	100	YSJ100L-2G	380	6.0	50	F	1.0	IP55	S1	61.7/28.0
4.0/3.0	1440	100	YSJ100L2-4G	380	6.5	50	F	1.0	IP55	S1	74.9/34.0
4.0/3.0	960	132	YSJ132S-6G	380	7.4	50	F	1.0	IP55	S1	96.9/44.0
4.0/3.0	720	132	YSJ132M-8G	380	7.8	50	F	1.0	IP55	S1	110.2/50.0
5.5/4.0	2900	112	YSJ112M-2G	380	7.8	50	F	1.0	IP55	S1	61.7/28.0
5.5/4.0	1450	112	YSJ112M-4G	380	8.5	50	F	1.0	IP55	S1	83.7/38.0
5.5/4.0	960	132	YSJ132M1-6G	380	9.6	50	F	1.0	IP55	S1	107.9/49.0
7.5/5.5	2910	132	YSJ132S1-2G	380	10.6	50	F	1.0	IP55	S1	96.9/44.0
7.5/5.5	1455	132	YSJ132S-4G	380	11.9	50	F	1.0	IP55	S1	116.7/53.0
7.5/5.5	960	132	YSJ132M2-6G	380	13.1	50	F	1.0	IP55	S1	130.0/59.0
10.0/7.5	2910	132	YSJ132S2-2G	380	14.1	50	F	1.0	IP55	S1	107.9/49.0
10.0/7.5	1455	132	YSJ132M-4G	380	15.8	50	F	1.0	IP55	S1	134.3/61.0

IE4 High Efficiency Three Phase Induction Motor Download
