NEMA-Stainless Steel Motor-3 Phase Washdown Duty

Stainless Steel Motor-3 Phase Washdown Duty-56&145

three phase washdown duty stainless steel motors have waterproof seals on shaft extensions. The three phase washdown duty stainless steel motor drain has holes in endbells to facilitate draining in any mounting position.

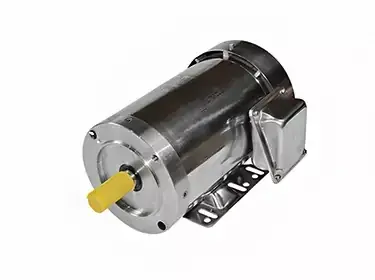

Stainless Steel Motor-3 Phase Washdown Duty-56&145T2

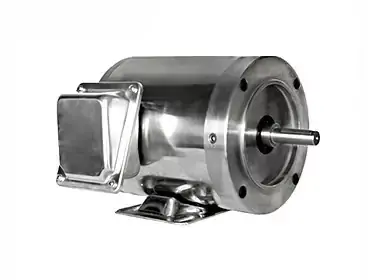

Stainless Steel Motor-3 Phase Washdown Duty-56&145T3

特征

· 变频-6-60HZ
· 轴伸上有防水密封
· 在端盖上有排水孔4个适用于任何安装下的排水
· T型排水（1）安装在非轴端盖的基座位置—可以被重新定位
· 第二个T型排水用在轴端用于客户安装在恰当的排水点

Features

· INVERTER RATED – 6-60HZ CT, VT / PWM VFD 1.0 S.F
· Waterproof seals on shaft extensions
· Drain holes (4) in endbells to facilitate draining in any mounting position
· T-drain (1) comes installed in non-shaft endbell at base position – can be
relocated
· 2nd T-drain for shaft end provided for customer installation at proper
drainage point

Series:	YXN	Frame construction:	Stainless Steel
Frame size:	56C,143TC,145TC,182TC,184TC,213TC,215TC,254TC,256TC,284TC,286TC	Enclosure :	TEFC
Power output:	0.33 – 30HP	Insulation Class :	F
Voltages:	208-230V/460	Cooling method:	IC411
Number of poles:	2, 4	Certificates:	CCC, CE
Ambient Temperature :	40 °C	Mounting arrangements:	Rigid Base

		FRAME	UL	电压	230V	EFF	INS.			DUTY	WGT
HP	RPM	FRAME	TYPE	VOLTAGE	FLA	（%）	CLASS	S.F	ENCL.	DUTY	LB/KG
0.33	1800	56C	YXN5624D-B	208-230/460	1.3	78.5	F	1.15	TENV	CONT.	29/13.1
0.33	3600	56C	YXN5612D-B	208-230/460	1	74	F	1.15	TENV	CONT.	27/12.3
0.5	1800	56C	YXN5634D-B	208-230/460	1.6	78.6	F	1.15	TENV	CONT.	30.3/13.6
0.5	3600	56C	YXN5622D-B	208-230/460	1.5	77	F	1.15	TENV	CONT.	28/12.7
0.75	1800	56C	YXN5644D-B	208-230/460	2.3	82.5	F	1.15	TENV	CONT.	31/14.1
0.75	3600	56C	YXN5632D-B	208-230/460	2	78.5	F	1.15	TENV	CONT.	30/13.6
0.33	1800	56C	YXN5614D-BF	208-230/460	1.5	64	F	1.15	TEFC	CONT.	27.8/12.6
0.33	3600	56C	YXN5602D-BF	208-230/460	1.4	60	F	1.15	TEFC	CONT.	26.7/23.1
0.5	1800	56C	YXN5624D-BF	208-230/460	2	72	F	1.15	TEFC	CONT.	29.3/13.3
0.5	3600	56C	YXN5612D-BF	208-230/460	1.9	68	F	1.15	TEFC	CONT.	28/12.7
0.75	1800	56C	YXN5634D-BF	208-230/460	2.7	76	F	1.15	TEFC	CONT.	31.3/14.2
0.75	3600	56C	YXN5622D-BF	208-230/460	2.6	70	F	1.15	TEFC	CONT.	29.3/13.3
1	1800	143TC	YXN5674D-CP	208-230/460	3	85.5	F	1.15	TEFC	CONT.	44.5/20.2
1	3600	143TC	YXN5642D-CP	208-230/460	2.6	77	F	1.15	TEFC	CONT.	39/17.7
1.5	1800	145TC	YXN5684SD-DP	208-230/460	4.8	86.5	F	1.15	TEFC	CONT.	46.5/21.1
1.5	3600	143TC	YXN5662D-CP	208-230/460	4	84	F	1.15	TEFC	CONT.	42.5/19.3
2	1800	145TC	YXN5694D-DP	208-230/460	5.6	86.5	F	1.15	TEFC	CONT.	53.1/23.6
2	3600	145TC	YXN5672D-DP	208-230/460	5	85.5	F	1.15	TEFC	CONT.	45/20.4
3	3600	182TC	YXN182TC-2	208-230/460	6.9	86.5	F	1.15	TEFC	CONT.	87/39.5
3	1800	182TC	YXN182TC-4	208-230/460	7.2	89.5	F	1.15	TEFC	CONT.	94.7/43
5	3600	184TC	YXN184TC-2	208-230/460	11	88.5	F	1.15	TEFC	CONT.	99.8/45.3
5	1800	184TC	YXN184TC-4	208-230/460	12.4	89.5	F	1.15	TEFC	CONT.	109/49.5
7.5	3600	213TC	YXN213TC-2	208-230/460	17.4	89.5	F	1.15	TEFC	CONT.	131.1/59.5
7.5	1800	213TC	YXN213TC-4	208-230/460	19.4	91.7	F	1.15	TEFC	CONT.	159.7/72.5
10	3600	215TC	YXN215TC-2	208-230/460	22.8	90.2	F	1.15	TEFC	CONT.	150.9/68.5
10	1800	215TC	YXN215TC-4	208-230/460	24.6	91.7	F	1.15	TEFC	CONT.	181.7/82.5
15	3600	254TC	YXN254TC-2	208-230/460	34.4	91	F	1.15	TEFC	CONT.	264.3/120
15	1800	254TC	YXN254TC-4	208-230/460	35.6	92.4	F	1.15	TEFC	CONT.	268.7/122
20	3600	256TC	YXN256TC-2	208-230/460	45	91	F	1.15	TEFC	CONT.	286.4/130
20	1800	256TC	YXN256TC-4	208-230/460	47.2	93	F	1.15	TEFC	CONT.	319.4/145
25	3600	284TC	YXN284TC-2	208-230/460	56.6	91.7	F	1.15	TEFC	CONT.	363.4/165
25	1800	284TC	YXN284TC-4	208-230/460	57.6	93.6	F	1.15	TEFC	CONT.	374.5/170
30	3600	286TC	YXN286TC-2	208-230/460	67	91.7	F	1.15	TEFC	CONT.	374.5/170
30	1800	286TC	YXN286TC-4	208-230/460	68.2	93.6	F	1.15	TEFC	CONT.	425.1/193
