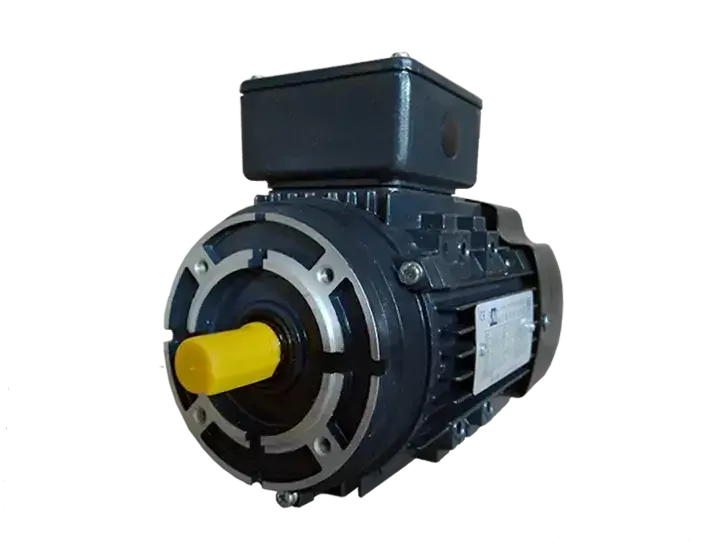

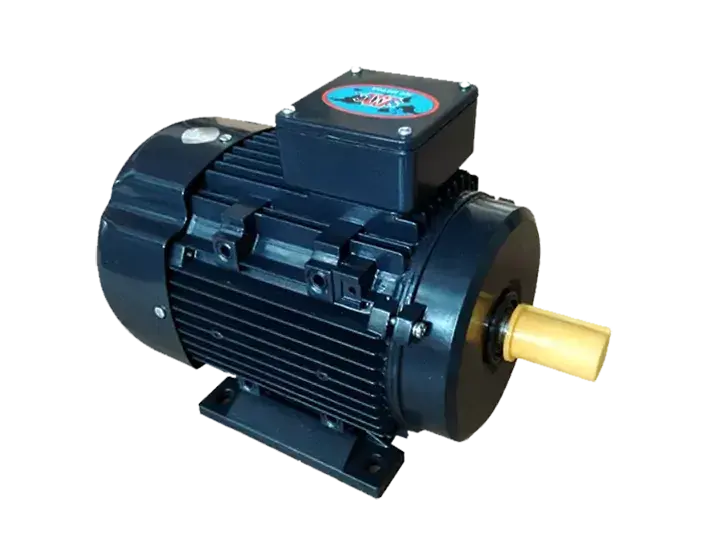

IEC-Metric YXJ Series Three-Phase High Efficiency Motors

IEC Metric YXJ Series Three-Phase High Efficiency Motors

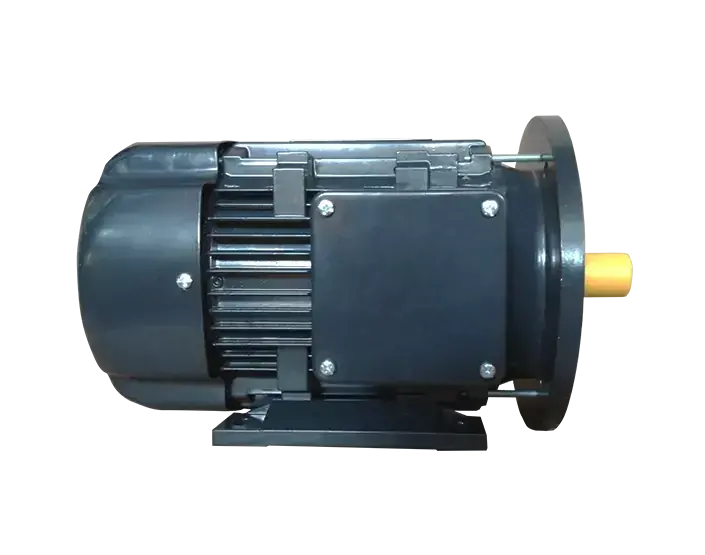

IEC Metric YXJ Series Three-Phase High Efficiency Motors3

特征

· YXJ系列铝壳三相异步电动机包括：63,71,80,90四个机座
· 电机符合IEC标准，效率符合国家能源标准
· 该系列电机根据NEMA标准派生出适合美国及北美地区使用
· 符合美国国家能源机构核准的超高效（YXJ)电动机

Features

· IEC standard design.
· High efficiency, NEMA premium efficiency standard.
· High quality of starting performance.
· Fit for full-load starting machine. and equipment application.
· Mounting: B3, B14, B34, B5, B35.

Series:	YXJ	Frame construction:	Aluminium
Frame size:	63 – 90	IP code:	IP55
Power output:	0.18- 2.2kW	Insulation Class :	F
Voltages:	230/460V, 575V	Cooling method:	IC411
Number of poles:	2, 4,	Certificates:	CE
Ambient Temperature :	40 °C	Mounting arrangements:	B3, B14, B5, B34, B35

Type	HP/KW	RPM	Frame No	Voltage	FLA	Eff	INS.	S.F.	IP CODE	Duty	WGT LB/KG
Type	HP/KW	RPM	Frame No	(v)	(A)	(%)	INS.	S.F.	IP CODE	Duty	WGT LB/KG
YXJ6312I	0.25/0.18	3430	63	230/460	0.84/0.42	72	F	1.15	55	CONT	10.0/4.5
YXJ6324I	0.25/0.18	1700	63	230/460	1.0/0.5	68	F	1.15	55	CONT	10.0/4.5
YXJ7116I	0.25/0.18	1120	71	230/460	1.16/0.58	64	F	1.15	55	CONT	12.6/5.7
YXJ6312I-1	0.25/0.18	3430	63	575	0.33	72	F	1.15	55	CONT	10.0/4.5
YXJ6324I-1	0.25/0.18	1700	63	575	0.43	68	F	1.15	55	CONT	10.0/4.5
YXJ7116I-1	0.25/0.18	1120	71	575	0.46	64	F	1.15	55	CONT	12.6/5.7
YXJ6322I	0.33/0.25	3430	63	230/460	1.1/0.55	72	F	1.15	55	CONT	11.0/5.0
YXJ7114I	0.33/0.25	1700	71	230/460	1.4/0.7	68	F	1.15	55	CONT	13.0/5.9
YXJ8006I	0.33/0.25	1100	80	230/460	1.3/0.65	70	F	1.15	55	CONT	17.4/7.9
YXJ6322I-1	0.33/0.25	3430	63	575	0.44	72	F	1.15	55	CONT	11.0/5.0
YXJ7114I-1	0.33/0.25	1700	71	575	0.57	68	F	1.15	55	CONT	13.0/5.9
YXJ8006I-1	0.33/0.25	1100	80	575	0.52	72	F	1.15	55	CONT	17.4/7.9
YXJ7112I	0.50/0.37	3410	71	230/460	1.6/0.8	74	F	1.15	55	CONT	13.0/5.9
YXJ7124I	0.50/0.37	1695	71	230/460	1.8/0.9	74	F	1.15	55	CONT	15.0/6.8
YXJ8016I	0.50/0.37	1100	80	230/460	1.9/0.95	72	F	1.15	55	CONT	19.0/8.6
YXJ7112I-1	0.50/0.37	3410	71	575	0.66	74	F	1.15	55	CONT	13.0/5.9
YXJ7124I-1	0.50/0.37	1695	71	575	0.74	74	F	1.15	55	CONT	15.0/6.8
YXJ8016I-1	0.50/0.37	1100	80	575	0.76	72	F	1.15	55	CONT	19.0/8.6
YXJ7122I	0.75/0.55	3400	71	230/460	2.4/1.2	74	F	1.15	55	CONT	15.0/6.8
YXJ8014I	0.75/0.55	1700	80	230/460	2.5/1.25	74	F	1.15	55	CONT	21.0/9.5
YXJ8026I	0.75/0.55	1100	80	230/460	2.7/1.35	72	F	1.15	55	CONT	22.5/10.2
YXJ7122I-1	0.75/0.55	3400	71	575	0.91	74	F	1.15	55	CONT	15.0/6.8
YXJ8024I-1	0.75/0.55	1700	80	575	1.02	74	F	1.15	55	CONT	21.0/9.5
YXJ8026I-1	0.75/0.55	1100	80	575	1.08	72	F	1.15	55	CONT	22.5/10.2
Type	HP/KW	RPM	Frame No	Voltage	FLA	FREQ	INS.	S.F.	IP CODE	Duty	WGT LB/KG
Type	HP/KW	RPM	Frame No	(v)	(A)	FREQ	INS.	S.F.	IP CODE	Duty	WGT LB/KG
YXJ8012P	1.0/.75	3420	80	230/460	2.8/1.4	60	F	1.15	55	CONT	21.0/9.5
YXJ8024P	1.0/.75	1740	80	230/460	3.0/1.5	60	F	1.15	55	CONT	30.2/13.7
YXJ90S6P	1.0/.75	1150	90	230/460	3.2/1.6	60	F	1.15	55	CONT	36.2/16.4
YXJ8012P-1	1.0/.75	3420	80	575	1.15	60	F	1.15	55	CONT	21.0/9.5
YXJ8024P-1	1.0/.75	1740	80	575	2.4	60	F	1.15	55	CONT	30.2/13.7
YXJ90S6P-1	1.0/.75	1150	90	575	2.6	60	F	1.15	55	CONT	36.2/16.4
YXJ8022P	1.5/1.1	3420	80	230/460	3.8/1.9	60	F	1.15	55	CONT	26.0/11.8
YXJ90S4P	1.5/1.1	1750	90	230/460	4.2/2.1	60	F	1.15	55	CONT	35.0/15.9
YXJ90L6P	1.5/1.1	1100	90	230/460	4.4/2.2	60	F	1.15	55	CONT	41.9/19.0
YXJ8022P-1	1.5/1.1	3420	80	575	1.6	60	F	1.15	55	CONT	26.0/11.8
YXJ90S4P-1	1.5/1.1	1750	90	575	1.8	60	F	1.15	55	CONT	35.0/15.9
YXJ90L6P-1	1.5/1.1	1100	90	575	1.8	60	F	1.15	55	CONT	41.9/19.0
YXJ90S2P	2.0/1.5	3520	90	230/460	5.0/2.5	60	F	1.15	55	CONT	36.2/16.4
YXJ90L4P	2.0/1.5	1745	90	230/460	5.4/2.7	60	F	1.15	55	CONT	41.9/19.0
YXJ90S2P-1	2.0/1.5	3520	90	575	2	60	F	1.15	55	CONT	36.2/16.4
YXJ90L4P-1	2.0/1.5	1745	90	575	2.3	60	F	1.15	55	CONT	41.9/19.0
YXJ90L2P	3.0/2.2	3500	90	230/460	7.2/3.6	60	F	1.15	55	CONT	40.0/18.2
YXJ90L2P-1	3.0/2.2	3480	90	575	3.1	60	F	1.15	55	CONT	40.0/18.2
