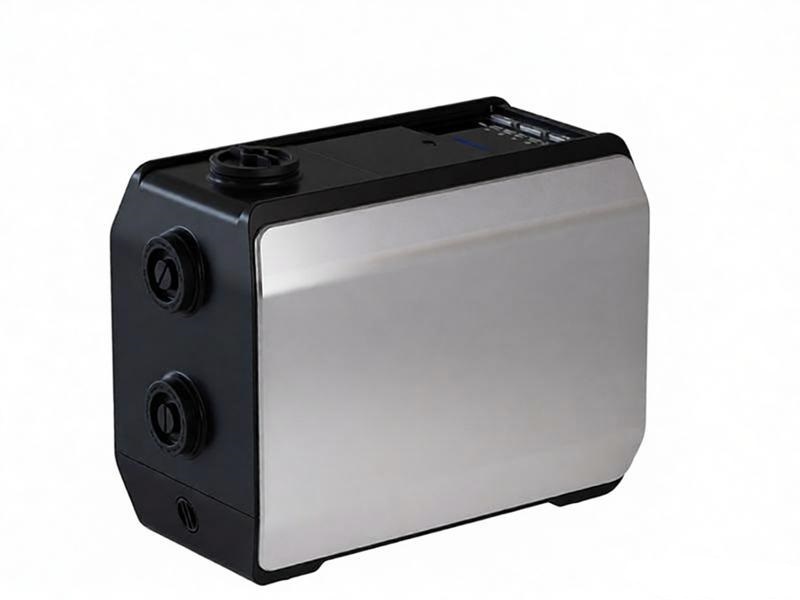

FP400
Intelligent Permanent Magnet Booster Pump

It offers intelligent start-stop functionality, automatically entering standby mode during non-water use. With a visual interface for one-touch pressure adjustment, its clear – cut operation panel allows 4 – level pressure settings to meet diverse needs. Equipped with an intelligent pressure sensor and variable frequency technology, it ensures automatic constant pressure and stable water output for multiple faucets simultaneously.

Flow rate	up to 79 l/min (4.75 m³/h)
Head up	up to 30 m
Medium temperature	2～60℃
Operating ambient temperature	0～55℃
Max.suction	up to 5m
Working Noise	≤45dB (3m³/h)
Insulation Grade	H
Ingress production	IP44

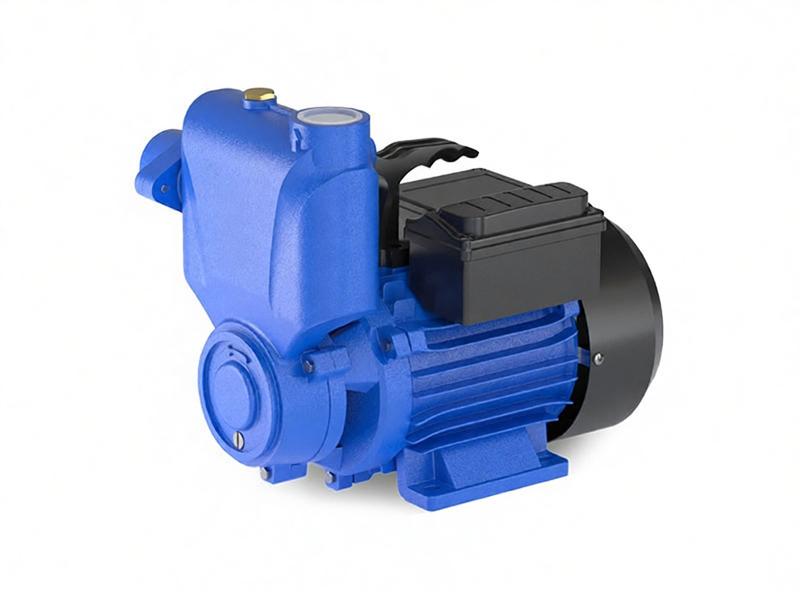

A1
Self-priming Peripheral Pump Series

A1 type is the self-priming peripheral pump series, designed to transfer clean water or other liquids similar with water in physical and chemical properties. Single phase and three phase multiple choice for related application. Reliable, easy to operate, and cost-effective. Ideal for residential applications such as living water supply, automatic water sprinkler system, small HVAC or supporting equipment, etc.

Flow rate	up to 100 L/min ( 6 m³/h)
Head up	Up to 55 m
Max. suction head	up to 8 m
Liquid temperature	between -10 °C and +60 °C
Ambient temperature	up to +40 °C
Maximum working pressure	3 bar for A1-250 4 bar for A1-370(S), 550(S) 5 bar for A1-750(S) 6 bar for A1-1100(S)
Motor	2-pole copper winding
Insulation Class	class F
Protection Class	IP X4

Pump housing	HT 200
Impeller	Brass
Shaft	Stainless steel AISI 304
Motor bracket	HT 200

A1-ZJ
Self-priming Peripheral Pump Series

A1-ZJ series is the self-priming type peripheral pump series equipped with mechanical switch, flow sensor and 2L air tank, designed to transfer clean water or other liquids similar with water in physical and chemical properties. Reliable with automatic start and stop function, easy to operate, and cost-effective. Ideal for residential applications such as living water supply, automatic water sprinkler system, small HVAC or supporting equipment, etc.

Flow rate	up to 100 L/min (6 m³/h)
Head up	Up to 55 m
Max. suction head	up to 8 m
Liquid temperature	between -10 °C and +60 °C
Ambient temperature	up to +40 °C
Maximum working pressure	3 bar for A1-200ZJ, 300ZJ 4 bar for A1-400ZJ, 600ZJ 5 bar for A1-800ZJ 6 bar for A1-1100ZJ
Motor	2-pole copper winding
Insulation Class	class F
Protection Class	IP X4

Pump housing	HT 200
Impeller	Brass
Shaft	Stainless steel AISI 304
Motor bracket	ZL 102

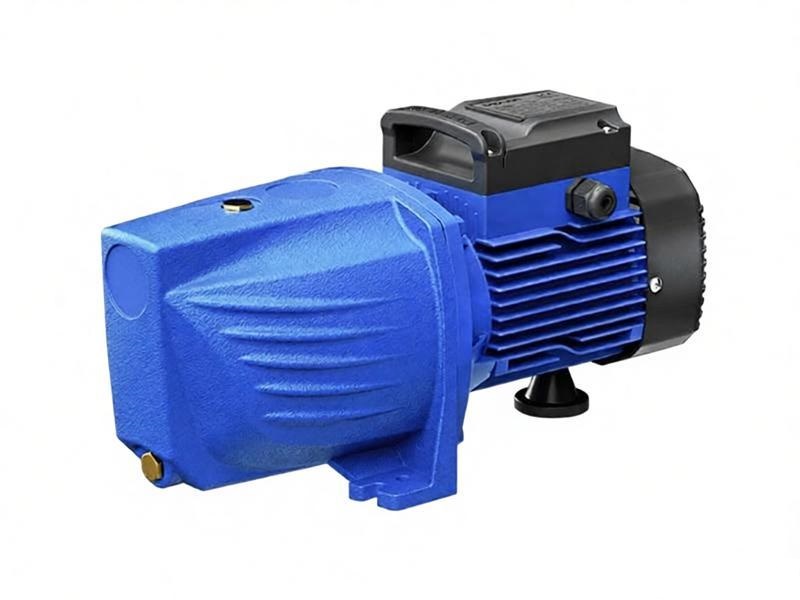

JETm-Y
Self-priming Jet pump Series

The JETm-Y features a cast iron body for durability, a PPO/brass impeller for optimal performance and corrosion resistance, and an AISI 304 + steel 45# shaft. Equipped with a fully-copper winding motor and ensures 6% of efficiency lifting compared with old models. Built-in thermal protector as standard for single phase motor and ICL F class. Highlights: Corrosion-Resistant Stainless Steel Shaft; Double-layer electrophoresis process; Ultra high suction head 10 meter; Strong driving force;

Flow rate	up to 110 L/min (6.5m³/h)
Head up	Up to 55 m
Max. suction head	up to 9 m
Liquid temperature	between -10 °C and +60 °C
Ambient temperature	up to +40 °C
Maximum working pressure	3 bar for JET-370-Y 4 bar for JET-750/550-Y 5 bar for JET-920/1100-Y 6 bar for JET-1500-Y
Motor	2-pole copper winding
Insulation Class	class F
Protection Class	IP X4

Pump housing	HT 200
Impeller	PPO/ Brass
Shaft	AISI 304 +Steel 45#
Motor bracket	ZL 102

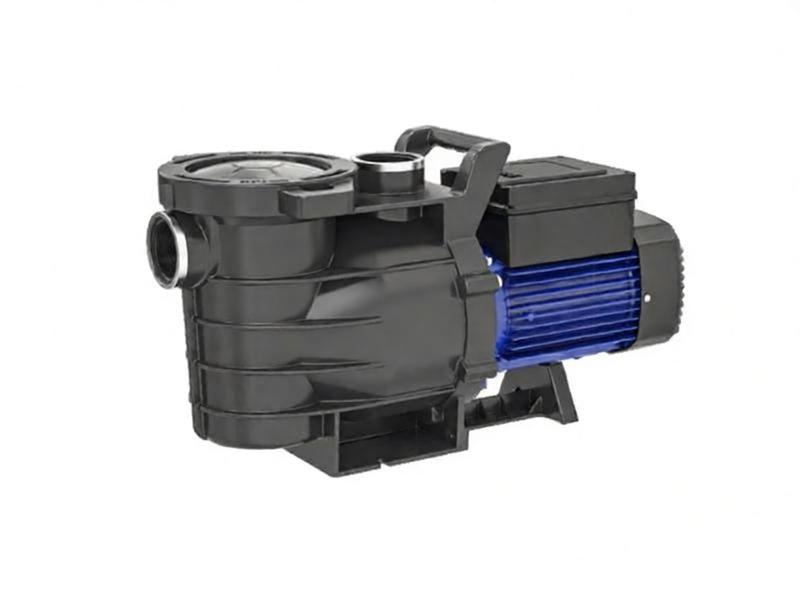

DSWm-A
Swimming Pool Pump

Swimming Pool Pump

Flow rate	up to 633 l/min (38 m³/h)
Head up	up to 24 m
Medium temperature	4～50℃
Max.suction	up to 3m
Working Noise	≤45dB
Insulation Grade	H
Ingress production	IP44

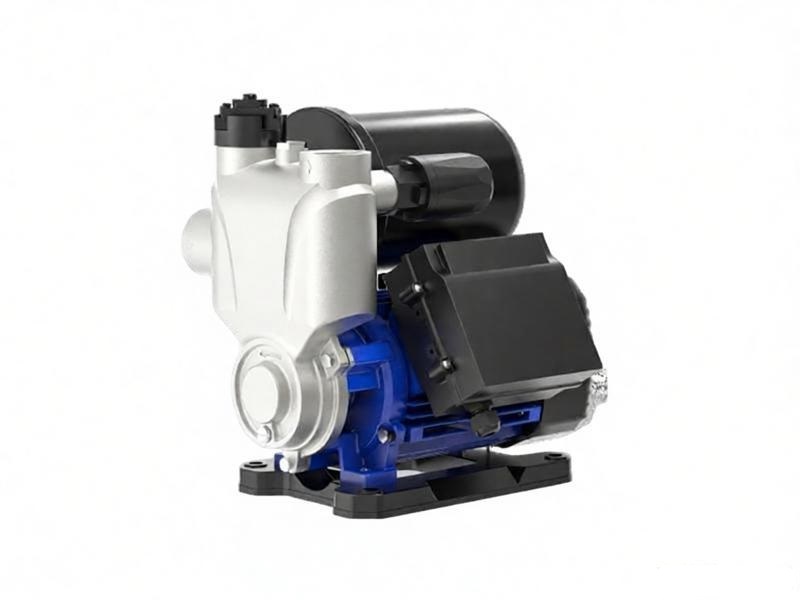

A1-ZWS-Y
Stainless Steel Self-priming Peripheral Pump

Stainless Steel Self-priming Peripheral Pump

Flow rate	up to 55 l/min (3.3 m³/h)
Head up	up to 50 m
Medium temperature	2～40℃
Operating ambient temperature	0～55℃
Max.suction	up to 5m
Working Noise	≤45dB (3m³/h)
Insulation Grade	H
Ingress production	IPX4

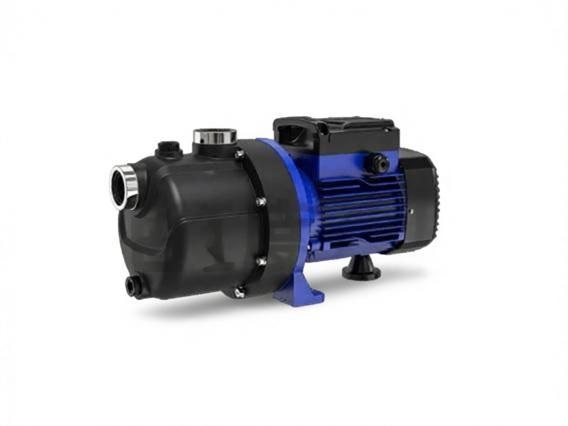

JETm-P-Y
Plastic Jet Pump

Plastic Jet Pump

Flow rate	up to 80 l/min (4.8 m³/h)
Head up	up to 50 m
Medium temperature	2～40℃
Max.suction	up to 5m
Working Noise	≤45dB
Insulation Grade	H
Ingress production	IP44

DKm-B
Micro Peripheral Pump Series

DKm is the micro peripheral pump series designed to transfer clean water free from abrasive particles and liquids that will not damage the pump’s components. Reliable, easy to operate, and cost-effective. Ideal for domestic and residential applications, specifically for gardens and orchards, in combination with air tanks to make for a small booster pump syetem.

Flow rate	up to 60 l/min (3.5m³/h)
Head up	Up to 65 m
Max. suction head	up to 8 m
Liquid temperature	between -10 °C and +60 °C
Ambient temperature	up to +40 °C
Maximum working pressure	3 bar for DKm60 6 bar for DKm70 7 bar for DKm80
Motor	2-pole copper winding
Insulation Class	class F
Protection Class	IP X4

Pump housing	HT 200
Impeller	Brass
Shaft	Stainless steel AISI 304
Motor bracket	ZL 102

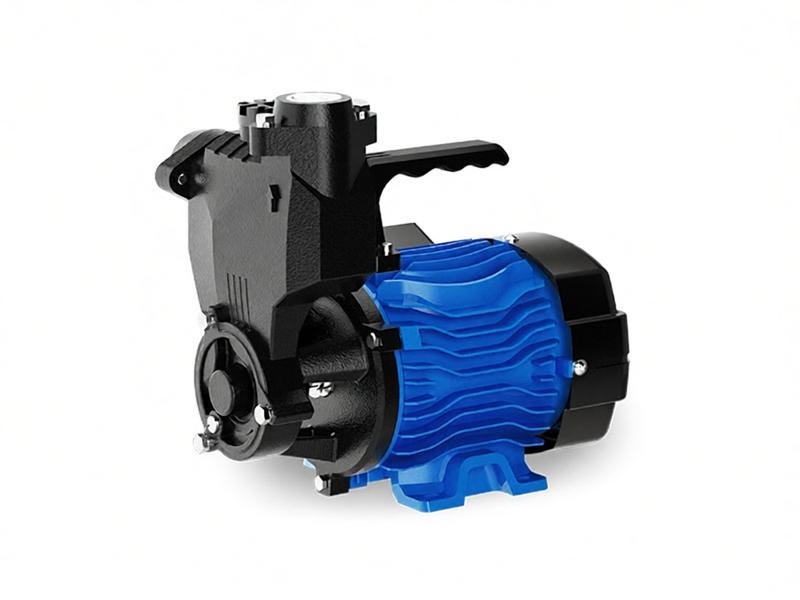

DGP
Self-priming Peripheral Pump Series

DGP is the self-priming type peripheral pump series designed to transfer clean water or other liquids similar with water in physical and chemical properties. Reliable, easy to operate, and cost-effective. Ideal for residential applications such as living water supply, automatic water sprinkler system, small HVAC or supporting equipment, etc.

Flow rate	up to 50 L/min (3 m³/h)
Head up	Up to 42 m
Max. suction head	up to 8 m
Liquid temperature	between -10 °C and +60 °C
Ambient temperature	up to +40 °C
Maximum working pressure	3 bar for DGP116, 126 4 bar for DGP130, 226 5 bar for DGP550
Motor	2-pole copper winding
Insulation Class	class F
Protection Class	IP X4

Pump housing	HT 200
Impeller	Brass
Shaft	Stainless steel AISI 304
Motor bracket	ZL 102

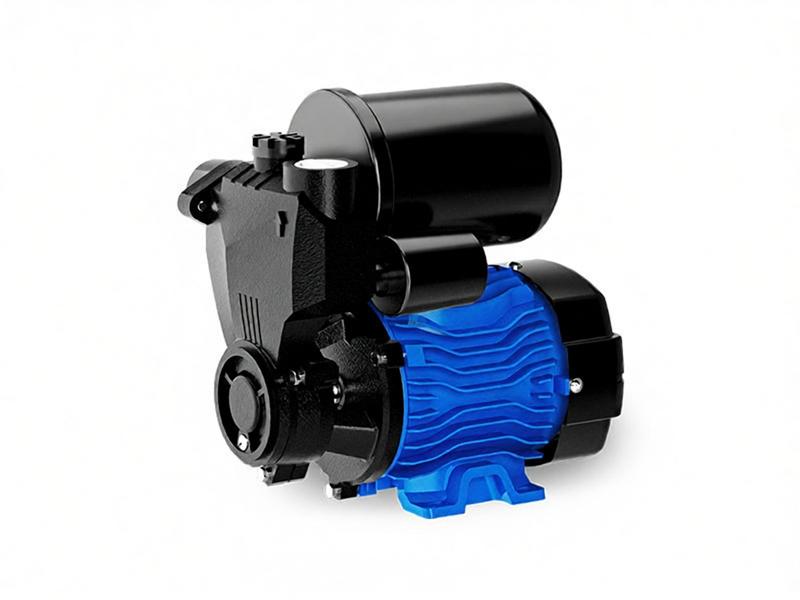

DGP-A
Self-priming Peripheral Pump Series

DGP-A is the self-priming type peripheral pump series equipped with mechanical switch and 2L air tank, designed to transfer clean water or other liquids similar with water in physical and chemical properties. Reliable, easy to operate, and cost-effective. Ideal for residential applications such as living water supply, automatic water sprinkler system, small HVAC or supporting equipment, etc.

Flow rate	up to 80 L/min (4.8 m³/h)
Head up	Up to 55 m
Max. suction head	up to 8 m
Liquid temperature	between -10 °C and +60 °C
Ambient temperature	up to +40 °C
Maximum working pressure	3 bar for DGP130A 4 bar for DGP226A, 550A 5 bar for DGP750A 6 bar for DGP1100A
Motor	2-pole copper winding
Insulation Class	class F
Protection Class	IP X4

Pump housing	HT 200
Impeller	Brass
Shaft	Stainless steel AISI 304
Motor bracket	ZL 102

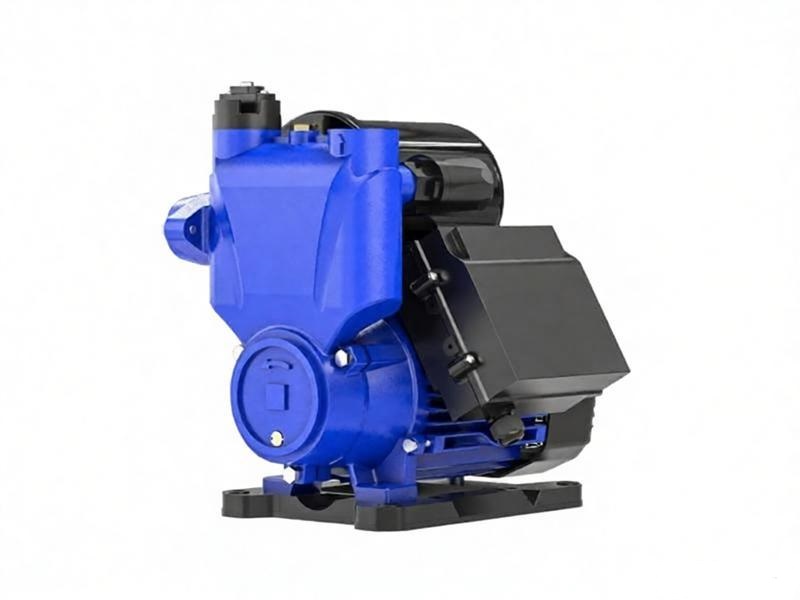

A1-ZW-Y
Self-priming Peripheral Pump Series

A1-ZW series is the self-priming type peripheral pump series equipped with mechanical swiTch, flow sensor and 2L air tank, designed to transfer clean water or other liquids similar with water in physical and chemical properties. With multi-functions such as delayed start, water shortage protection, flow switch protection, pipeline leakage protection, anti-jamming function, automatic start and stop function. Reliable, easy to operate, and cost-effective. Ideal for residential applications such as living water supply, automatic water sprinkler system, small HVAC or supporting equipment, etc.

Flow rate	up to 100 L/min (6 m³/h)
Head up	Up to 55 m
Max. suction head	up to 8 m
Liquid temperature	between -10 °C and +60 °C
Ambient temperature	up to +40 °C
Maximum working pressure	3 bar for A1-200ZW, 300ZW 4 bar for A1-400ZW, 600ZW 5 bar for A1-800ZW 6 bar for A1-1100ZW
Motor	2-pole copper winding
Insulation Class	class F
Protection Class	IP X4

Pump housing	HT 200
Impeller	Brass
Shaft	Stainless steel AISI 304
Motor bracket	ZL 102

DK
Micro Centrifugal Pump

DK series is the Micro Centrifugal Pump Series designed to transfer clean water or other liquids similar with water in physical and chemical properties. Reliable, easy to operate, and cost-effective. Ideal for residential applications such as rural water supply, garden irrigation, small living water supply.ect.

Flow rate	up to 390 L/min (24m³/h)
Head up	Up to 20 m
Max. suction head	up to 9 m
Liquid temperature	between -10 °C and +60 °C
Ambient temperature	up to +40 °C
Maximum working pressure	2 bar for 1DK15,1DK20, 1.5DK18, 1.5DK20, 2DK20
Motor	2-pole copper winding
Insulation Class	class F
Protection Class	IP X4

Pump housing	Cast iron
Impeller	PPO
Shaft	Stainless steel AISI 304
Motor bracket	PC

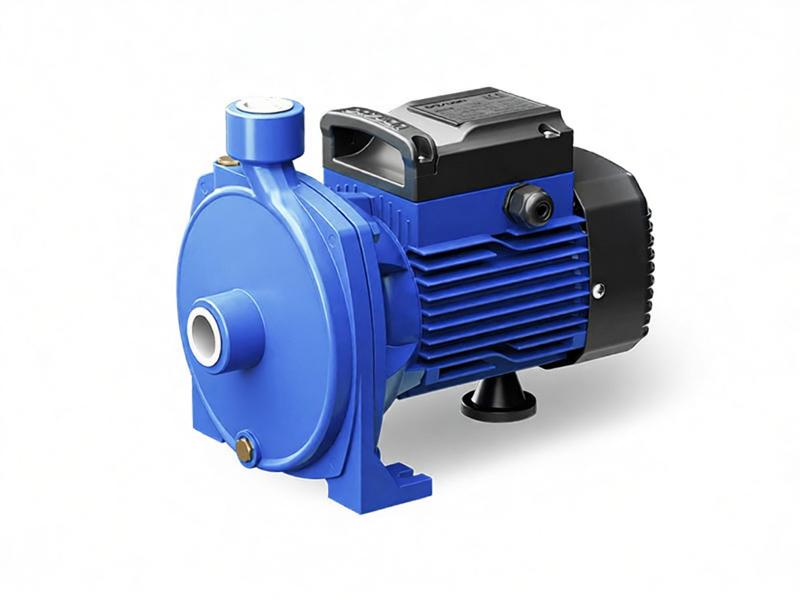

Cm-Y
Single-impeller Centrifugal Pump Series

Cm-Y series is the Single-impeller Centrifugal Pump Series designed to transfer clean water or other liquids similar with water in physical and chemical properties. Single phase and three phase multiple choice for related application. Reliable, easy to operate, and cost-effective. These pumps have extensive application in domestic and civil settings, ideal for residential applications such as rural water supply, garden irrgation, small HVAC or supporting equipment, etc.

Flow rate	up to 167 L/min (10m³/h)
Head up	Up to 50 m
Liquid temperature	between -10 °C and +60 °C
Ambient temperature	up to +40 °C
Maximum working pressure	3 bar for DCm370, 550, 750 5 bar for DCm1100, 1500 6 bar for DCm2200
Motor	2-pole copper winding
Insulation Class	class F
Protection Class	IP X4

Pump housing	HT 200
Impeller	Brass/AISI304
Shaft	Stainless steel AISI 304
Motor bracket	ZL 102

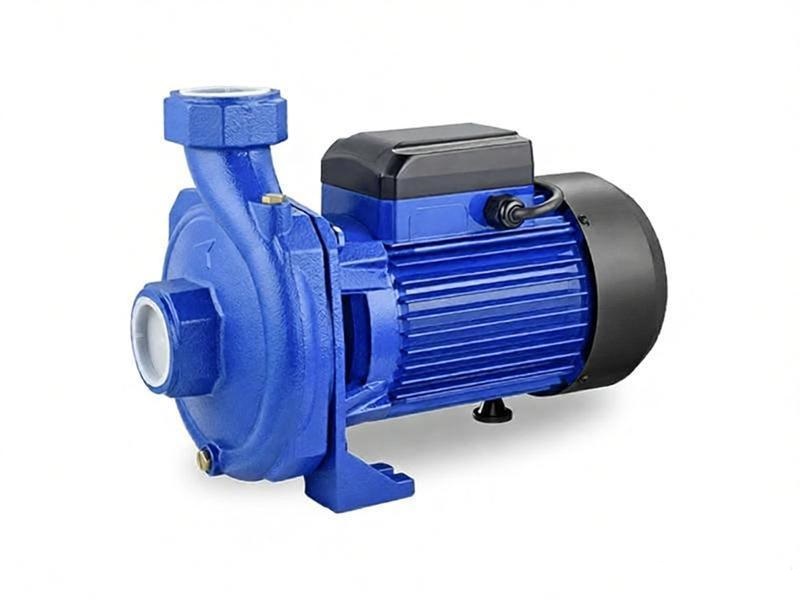

DSm
Centrifugal Pump Series

DSm series is the Centrifugal Pump Series designed to transfer clean water or other liquids similar with water in physical and chemical properties. Reliable, easy to operate, and cost-effective. Ideal for residential applications such as rural water supply, garden irrigation, small living water supply.ect.

Flow rate	up to 450 L/min (27m³/h)
Head up	Up to 25 m
Max. suction head	up to 9 m
Liquid temperature	between -10 °C and +60 °C
Ambient temperature	up to +40 °C
Maximum working pressure	2 bar for DSm60, DSm70 3 bar for DSm80
Motor	2-pole copper winding
Insulation Class	class F
Protection Class	IP X4

Pump housing	HT 200
Impeller	Brass/AISI304
Shaft	Stainless steel AISI 304
Motor bracket	ZL 102

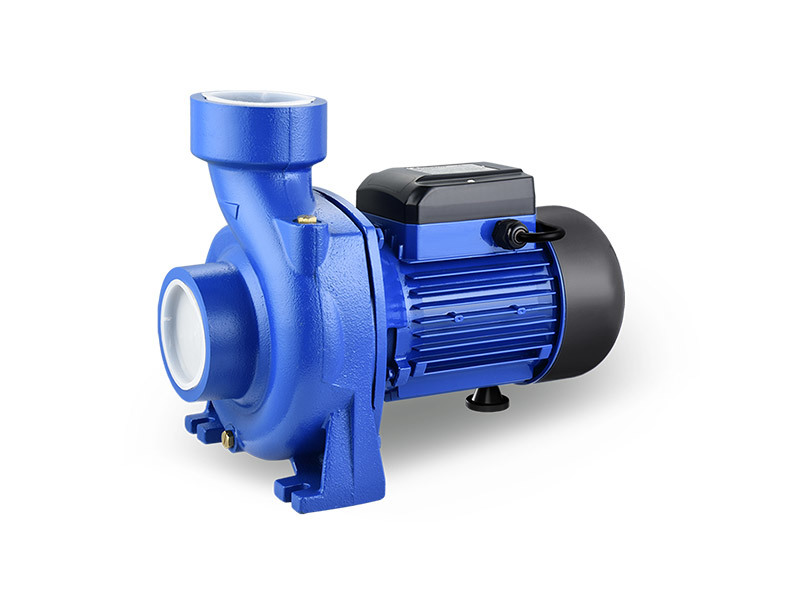

DHm
Centrifugal Pump Series

DHm series is the Centrifugal Pump Series designed to transfer clean water or other liquids similar with water in physical and chemical properties. Reliable, easy to operate, and cost-effective. Ideal for residential applications such as rural water supply, garden irrigation, small living water supply.ect.

Flow rate	up to 1180 L/min (70m³/h)
Head up	Up to 21 m
Max. suction head	up to 9 m
Liquid temperature	between -10 °C and +60 °C
Ambient temperature	up to +40 °C
Maximum working pressure	1 bar for DHm6C,5B 2 bar for DHm7BR, 7B, 6A,6AR,6B, 5AM,5BM
Motor	2-pole copper winding
Insulation Class	class F
Protection Class	IP X4

Pump housing	HT 200
Impeller	Brass
Shaft	Stainless steel AISI 304
Motor bracket	ZL 102

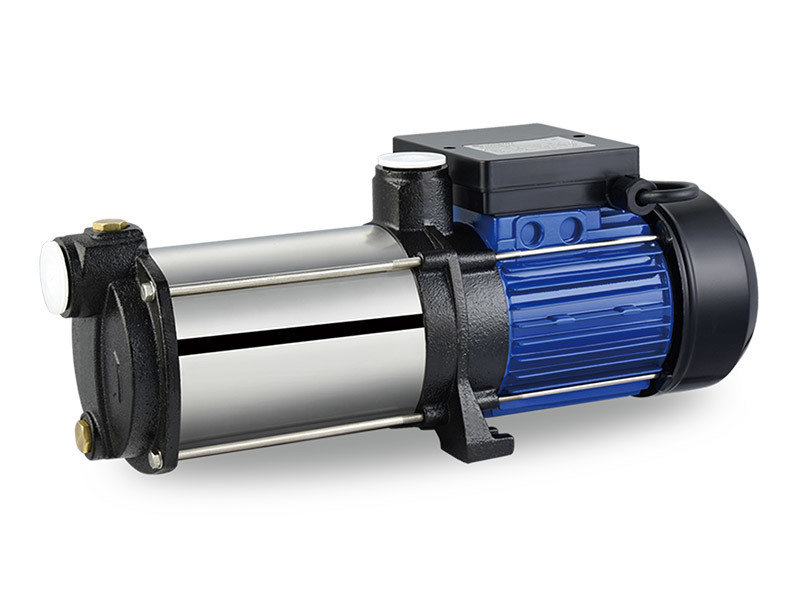

DJSm
Stainless Steel Multistage Centrifugal Pump Series

DJSm series is the Stainless Steel Multistage Centrifugal Pump Series designed to transfer clean water or other liquids similar with water in physical and chemical properties. Reliable, easy to operate, and cost-effective. Ideal for residential applications such as rural water supply, civilian water application, high rise buildings, ect.

Flow rate	up to 83 L/min (5 m³/h)
Head up	Up to 50 m
Max. suction head	up to 9 m
Liquid temperature	between -10 °C and +60 °C
Ambient temperature	up to +40 °C
Maximum working pressure	2 bar for DJSm-102/2 3 bar for DJSm-102/3 4 bar for DJSm-102/4 5 bar for DJSm-102/5
Motor	2-pole copper winding
Insulation Class	class F
Protection Class	IP X4

Pump housing	HT 200
Impeller	PPO
Shaft	Stainless steel AISI 304
Motor bracket	ZL 102

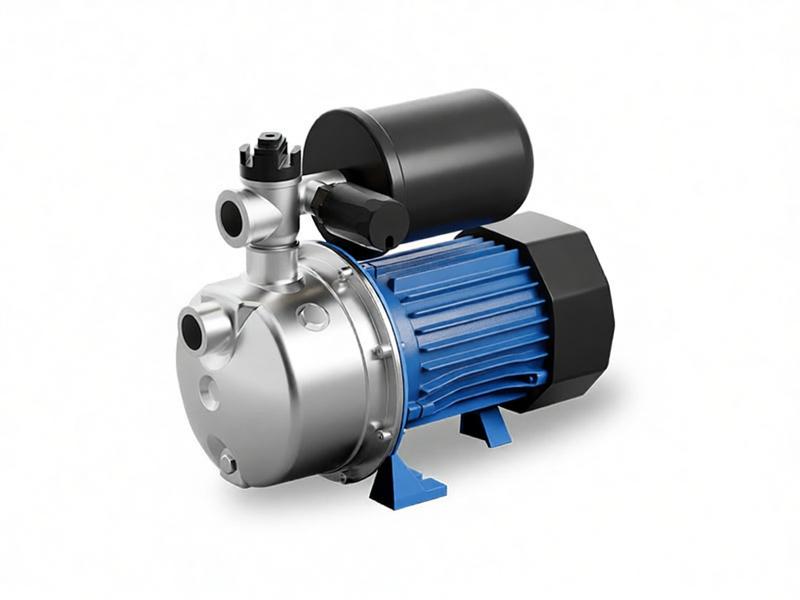

A3
Stainless Steel Jet Pump Series

A3 series is the Stainless Steel JET Pump Series equipped with Micro Switch, designed to transfer clean water or other liquids similar with water in physical and chemical properties. Reliable, easy to operate, and cost-effective. Ideal for residential applications such as well water lifting, garden irrigation. small living water supply, ect.

Flow rate	up to 106 L/min (6.6 m³/h)
Head up	Up to 55 m
Max. suction head	up to 9 m
Liquid temperature	between -10 °C and +60 °C
Ambient temperature	up to +40 °C
Maximum working pressure	4 bar for A3-400ZWS, 600ZWS 5 bar for A3-800ZWS, 1100ZWS 6 bar for A3-1500ZWS
Motor	2-pole copper winding
Insulation Class	class F
Protection Class	IP X4

Pump housing	AISI 304
Impeller	AISI 304
Shaft	AISI 304 + Steel 45#
Motor bracket	ZL 102

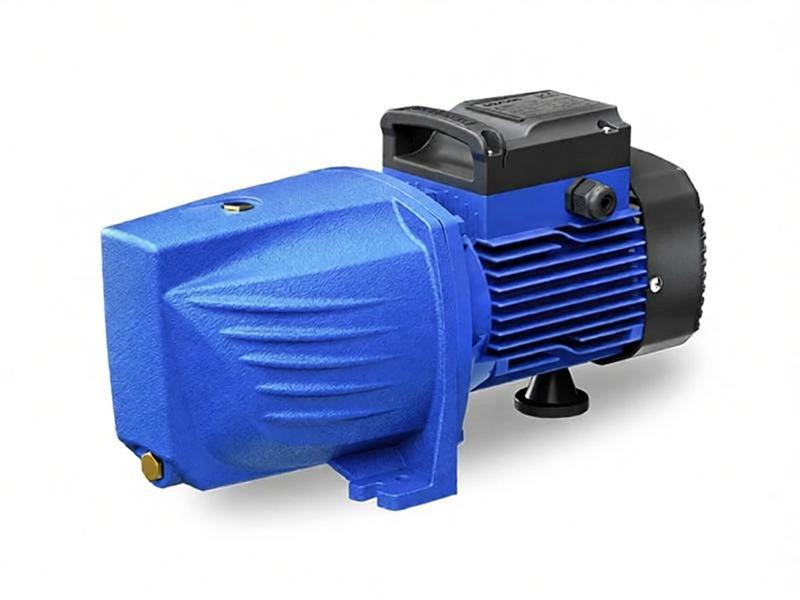

JET-YH
Self-priming Jet pump Series

JET-YH series is the Self-priming JET Pump Series designed to transfer clean water or other liquids similar with water in physical and chemical properties. Reliable, easy to operate, and cost-effective. Ideal for residential applications such as well water lifting, garden irrigation. small living water supply, ect.

Flow rate	up to 85 L/min (5.1 m³/h)
Head up	Up to 60 m
Max. suction head	up to 9 m
Liquid temperature	between -10 °C and +60 °C
Ambient temperature	up to +40 °C
Maximum working pressure	3 bar for JET-370AH 4 bar for JET-550AH 5 bar for JET-750AH, 1100AH 6 bar for JET-920AH, 1500AH
Motor	2-pole copper winding
Insulation Class	class F
Protection Class	IP X4

Pump housing	HT 200
Impeller	PPO/ Brass
Shaft	AISI 304 +Steel 45#
Motor bracket	ZL 102

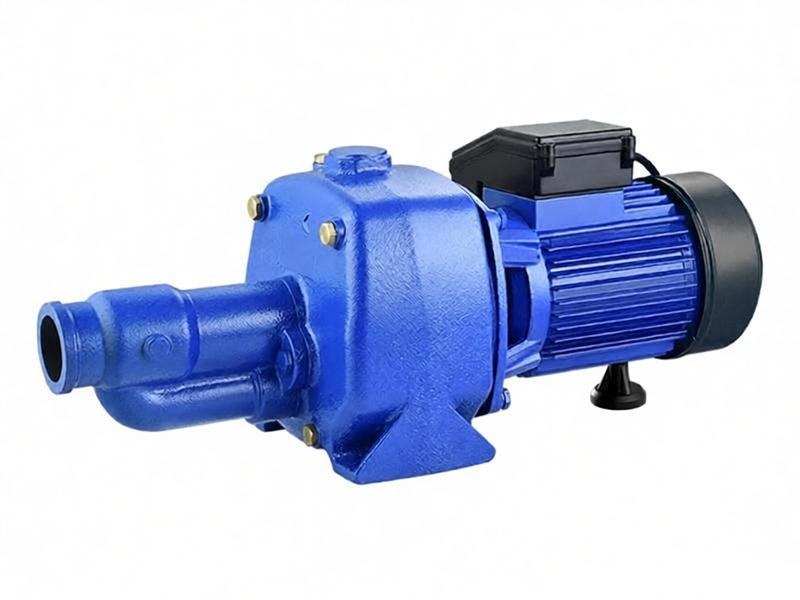

JA
JET Pump for Deep Well Series

JA series is the JET Pump Series designed to transfer clean water or other liquids similar with water in physical and chemical properties. Reliable, easy to operate, and cost-effective. Ideal for residential applications such as rural water supply, civilian water application, high rise building, ect.

Flow rate	up to 108 L/min (6.5 m³/h)
Head up	Up to 60 m
Max. suction head	up to 9 m
Liquid temperature	between -10 °C and +60 °C
Ambient temperature	up to +40 °C
Maximum working pressure	6 bar for JA150, 200
Motor	2-pole copper winding
Insulation Class	class F
Protection Class	IP X4

Pump housing	HT 200
Impeller	Brass
Shaft	AISI 304 + Steel 45#
Motor bracket	ZL 102
